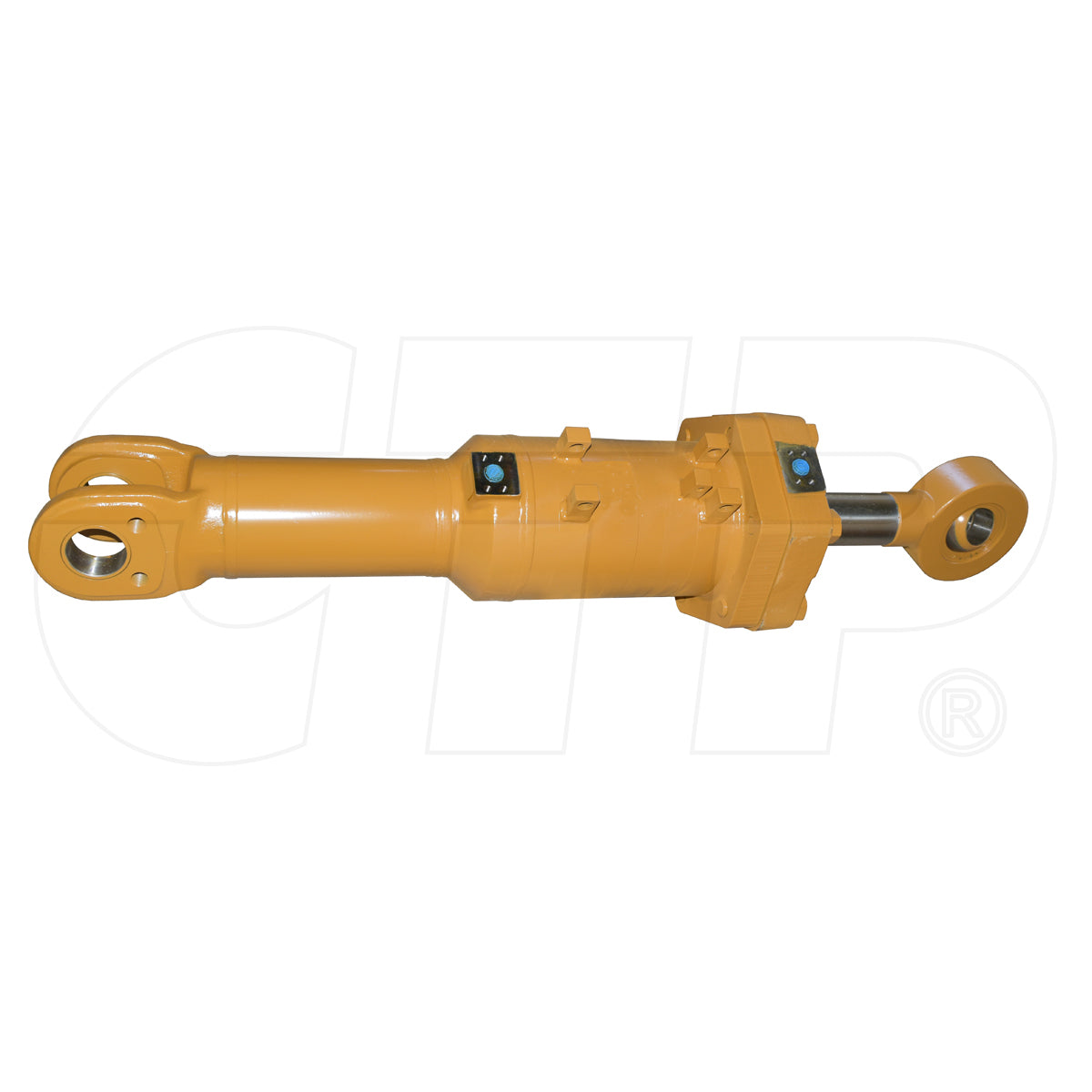

One New Aftermarket Replacement Cylinder Group - Tilt for Caterpillar (Cat) D9R and D9T Track-Type Tractors
This aftermarket replacement tilt cylinder group (Cylinder Gp-Tilt) is used in the ripper tilt hydraulic circuit on Caterpillar D9R and D9T large track-type dozers. The cylinder controls the tilt angle of the multi-shank or single-shank ripper attachment, allowing operators to adjust ripping depth and penetration angle. It is a direct-fit replacement for OEM part number 109-6778 (1096778).
Compatible Models
Caterpillar D9R Track-Type Tractor: Power Shift (serial prefixes 8BL, ACL), Differential Steering (serial prefixes 7TL, ABK), and JJB-prefix machines powered by the 3408 and 3408C engines
Caterpillar D9T Track-Type Tractor: RJS-prefix machines powered by the C18 engine
Note: This is a hydraulic cylinder assembly. Verify your machine serial number prefix against the list above before ordering.
Replaces Part Number(s):
1096778, 109-6778
Aftermarket Interchange Numbers
521-8442, 5218442, 109-8832, 1098832
New aftermarket replacement part - not remanufactured, not used.
