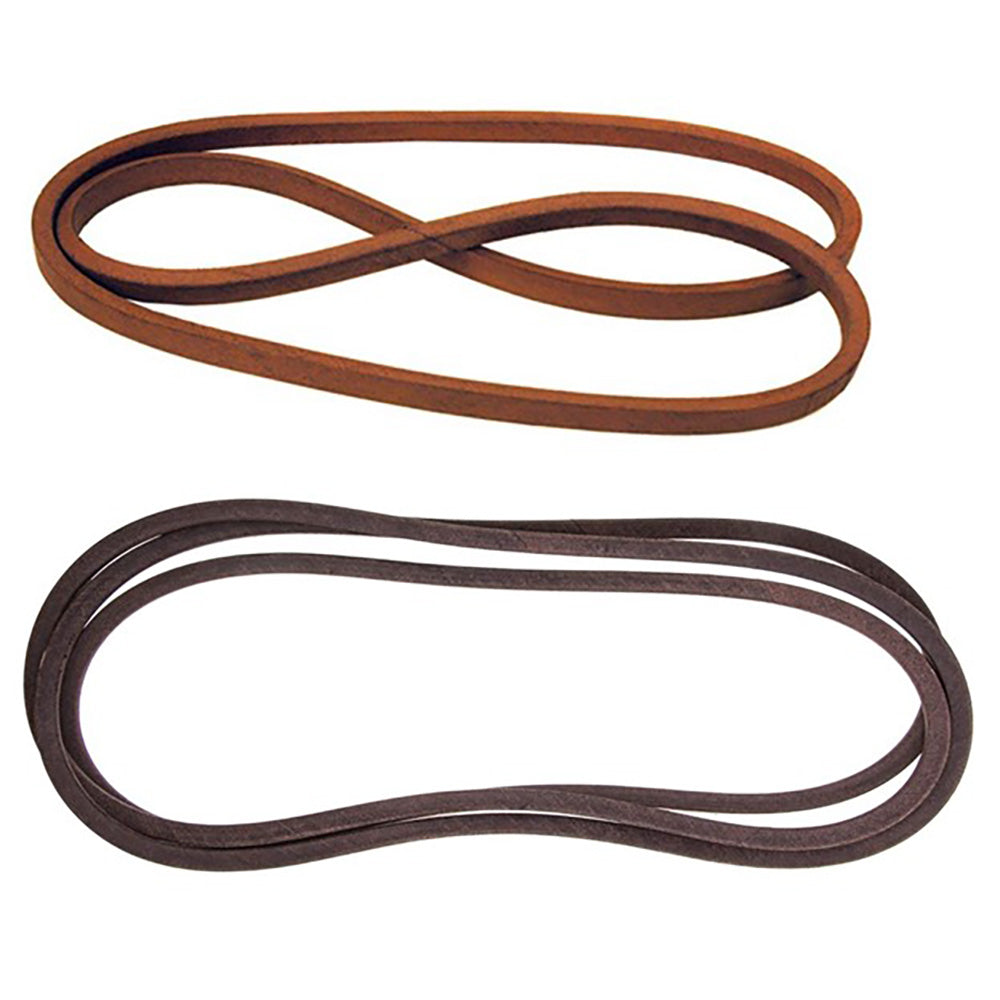

109-3388 Pump Drive & Deck Belt 115-7407 Fits Toro Z Master Mowers w/ 48" Deck

109-3388 Pump Drive & Deck Belt 115-7407 Fits Toro Z Master Mowers w/ 48" Deck

£90.00 GBP
£90.00 GBP
Sale Sold out
Shipping calculated at checkout.

New Aftermarket Replacement Pump Drive & Deck Belt Set for Z Master Mowers w/ 48" Side Discharge Decks


Fits Toro Zero-Turn Lawn Mower Models:
74901 (5000) (SN: 290000001 - 290999999) (2009),
74901 (5000) (SN: 310000001 - 310999999) (2010),
74901 (5000) (SN: 311000001 - 311999999) (2011),
74901 (5000) (SN: 312000001 - 312999999) (2012),
72902 TE (6000) (SN: 400000000 - 410999999),
72902 TE (6000) (SN: 411000000 - 412199999),
72902 TE (6000) (SN: 412200000 - 999999999),
74902 TE (6000) (SN: 311000001 - 311999999) (2011),
74902 TE (6000) (SN: 312000001 - 312999999) (2012),
74902 TE (6000) (SN: 313000001 - 313999999) (2013),
74902 TE (6000) (SN: 314000001 - 314999999) (2014),
74902 TE (6000) (SN: 316000001 - 316999999) (2016),
74902 TE (6000) (SN: 400000000 - 402079999),
74902 TE (6000) (SN: 402080000 - 403138032),
74902 TE (6000) (SN: 404320000 - 999999999),
72904 (5000) (SN: 400000000 - 999999999)

Belts Included:
(1) Pump Drive Belt
(1) Deck Belt

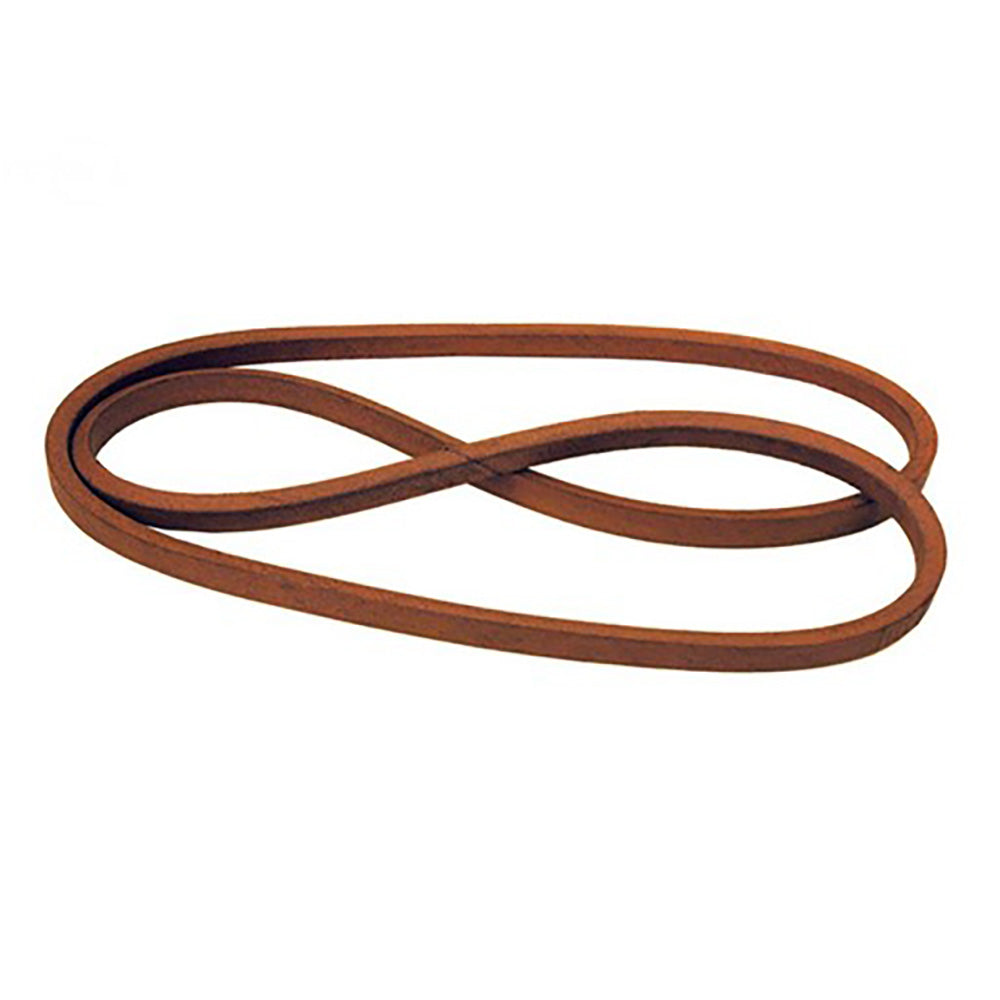

Pump Drive Belt Tech Info:
Type: Covered
Length: 75-1/2"
Width: 1/2"
Replaces Part Numbers: 126-9835, 109-8069, 109-3388, 1093388

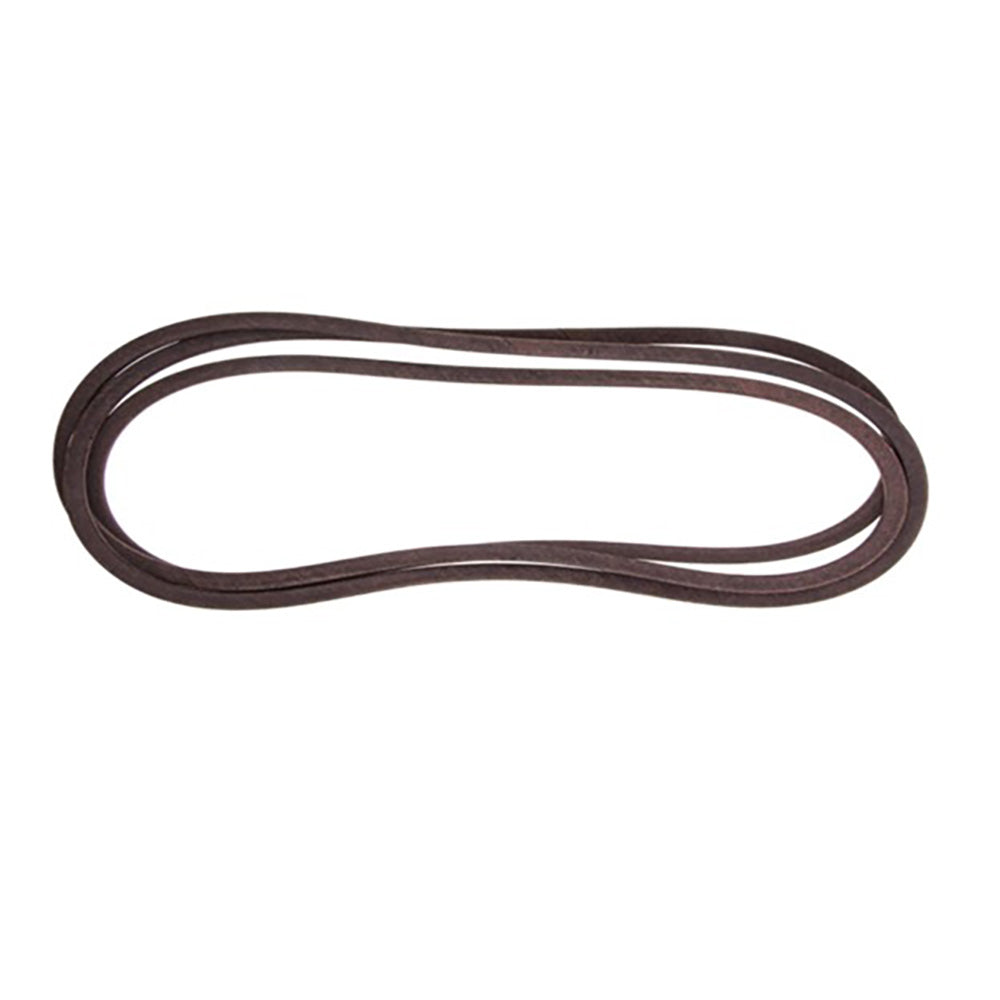

Deck Belt Tech Info:
Belt Type: Covered
Length: 174-3/4"
Width: 5/8"
Replaces Part Numbers: 115-7407, 1157407


The Model Numbers & Dimensions Listed Are for Reference Only.

Please Consult Your Service Manual and Verify Your Original Part Number(s) Before Ordering.

Models This Part Fits:

LZAS26LKA604 LAZER Z AS, LZS740PKC524 LAZER Z S, LZS801GKA524A2 LAZER Z S, LZX29EKC606 LAZER Z X, LZX980EKC72600 LAZER Z X, LZZ27KC606 LAZER Z Z, LZE801GKA724A3 LAZER Z E, LZS740PKC60400 LAZER Z S, LZX29EKC606SS LAZER Z S, LZS740AKC524A2 LAZER Z S, LZS801KA724 LAZER Z S, LZZ26KC606 LAZER Z Z, 72904 (5000), LZX29KA606SS LAZER Z X, LZAS20KC484 LAZER Z AS, LZZ27KC526 LAZER Z Z, LZS24KA524CA LAZER Z S, LZAS25KC604 LAZER Z AS, LZS801PKA604 LAZER Z S, LZAS25BV484 LAZER Z AS, LAZER Z AS, LZS801KA604SS LAZER Z S, LZE730GKA60RA1 LAZER Z E, LZX24KA526CA LAZER Z X, LZX980EKC726T0 LAZER Z X, LZZ23KC526 LAZER Z Z, LZE740EKC60400 LAZER Z E, LZX921GKA60600 LAXER Z X, LZE742GKC604A3 LAZER Z E, LZS23KC524 LAZER Z S, LZS801GKA60400 LAZER Z S, LZAS29KA724 LAZER Z AS, LZE801GKA72RA1 LAZER Z E, LZZ34KA726 LAZER Z Z, LZS749EKC724 LAZER Z S, LZX27KC526 LAZER Z X, LZZ34KC606 LAZER Z Z, LZZ29KA606 LAZER Z Z, LZX801GKA606B1 LAZER Z X, LZX740EKC526 LAZER Z X, LZS22KA484CA LAZER Z S, LZS651CKA484A2 LAZER Z S, LZS27KC604CA LAZER Z S, LZE742GKC60403 LAZER Z E, LZX921GKA72600 LAZER Z X, LZX940EKC60600 LAZERZ X, LZAS27KC604CA LAZER Z AS, LZE801GKA604B1 LAZER Z E, LZX940EKC72RT0 LAZER Z X, LZS29EKC724 LAZER Z S, LZAS27KC524 LAZER Z AS, LZS749EKC604 LAZER Z S, 72952 (3000), LZS691KA524CA LAZER Z S, LZZ23KC526CA LAZER Z Z, LZX940EKC606T0 LAZER Z X, LZX38KC606CA LAZER Z X, LZS801KA604 LAZER Z S, LAZER Z, LZS25EKC604 LAZER Z S, LZX940EKC60RT0 LAZER Z X, 74902 TE (6000), LZAS23KC524 LAZER Z AS, LZAS29KC604LP LAZER Z AS, LZX24KA526 LAZER Z X, LZX38KC726CA LAZER Z X, LZS680KC524 LAZER Z S, LZE801GKA604A3 LAZER Z E, LZX34KC726SS LAZER Z X, LZX34KC606 LAZER Z X, LZS27KC604SS LAZER Z S, LZS740KC604CA LAZER Z S, LZS27KC604 LAZER Z S, LZS691KA524 LAZER Z S, LZS740PKC604 LAZER Z S, LZS22KA484 LAZER Z S, LZAS27KC604 LAZER Z AS, LZS801PKA724 LAZER Z S, LZX34KC726 LAZER Z X, LZS749EKC72RS LAZER Z S, LAZER Z ADVANTAGE X, LZS29PKA724 LAZER Z S, LZZ27KC606CA LAZER Z Z, LZX38KC606 LAZER Z X, LZS730EKC604RD LAZER Z S, LZX680KC486 LAZER Z X, LZAS29KA724LP LAZER Z AS, LZX921KA726 LAZER Z X, LZE742KC604 LAZER Z E, LZS730EKC604 LAZER Z E, LAZER Z X, LZS801KA524 LAZER Z S, LZX740EKC606 LAZER Z X, LZE730EKC604 LAZER Z E, LZX29EKC606CA LAZER Z X, LZS740PKA724 LAZER Z S, LZX921KA606 LAZER Z X, LZS730EKC604RS LAZER Z S, LZX27KC606 LAZER Z X, LZE730KA604 LAZER Z E, 74901 CP (6000), LZS801GKA724A1 LAZER Z S, LZX801GKA60600 LAZER Z X, LZAS22KA484CA LAZER Z AS, LZE730KA604SS LAZER Z E, LZS740KC604 LAZER Z S, LZX23KC486 LAZER Z X, LZX29KA606 LAZER Z X, LZZ29KCE606 LAZER Z Z, LZE742GKC60400 LAZER Z E, LZS740KC524 LAZER Z S, LZS29PKA604 LAZER Z S, LZX980KC726 LAZER Z X, LZZ23KA526 LAZER Z Z, 74901 (5000), LZX740EKC526T0 LAZER Z X, LZX980KC606 LAZER Z X, LZX38KC606SS LAZER Z X, LZS740PKC72400 LAZER Z S, LZX740KC606CA LAZER Z X, LZE801GKA60RA1 LAZER Z E, LZS801KA524SS LAZER Z S, LZZ23KC486 LAZER Z Z, LZS29PKA606 LAZER Z S, LZX38KC726SS LAZER Z X, LZE740KCE604L LAZER Z E, LZS801GKA52400 LAZER Z S, 72902 TE (6000), LZZ29KA606LP LAZER Z Z, LZAS27KC524CA LAZER Z AS, LZX34KC606SS LAZER Z X, LZX740KC526 LAZER Z X, LZS29KA724 LAZER Z S, LZS740PKC52400 LAZER Z S, LZS740PHC60400 LAZER Z S, LZZ27KC526CA LAZER Z Z, LZE730GKA604A3 LAZER Z E, LZS749EKC72RD LAZER Z S, LZS651KA484CA LAZER Z S, LZS749EKC604SS LAZER Z S, LZS749AKC604A1 LAZER Z S, LZX38KC726 LAZER Z X, LZS749EKC604A1 LAZER Z S, LAZER Z LZ-LP, LZAS22KA484 LAZER Z AS, LZS801GKA604A1 LAZER Z S, LZX740KC606 LAZER Z X, LZS691CKA52400 LAZER Z S, LZE749EKC72RA1 LAZER Z E

Additional Information:

includes: (1) Drive Belt 1/2" x 75.51" Wrapped Polyester Cord Color Brown Length 75.51" Material Polyester Cord Thickness 0.4" Type Wrapped Width 1/2" Replaces Part Numbers: 1093388DC, 230-0163, B11093388, 126-9835, 109-8069 (1) Mower Deck Belt Width: 5/8" Length: 174-3/4" Wrapped Aramid Cord Replaces Part Number: 115-7407

Reference Numbers:

115-7407, 1093388SL, 1093388, 109-3388, CC12426, 1093388DC, 230-0163, B11093388, 126-9835, 109-8069

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Belts
View More: Belts Replacement Parts
