108317 Water Pump Fits Allis Chalmers Tractors - W201 W226 WC WD WD45 WF

108317 Water Pump Fits Allis Chalmers Tractors - W201 W226 WC WD WD45 WF

£100.00 GBP
£100.00 GBP
Sale Sold out
Shipping calculated at checkout.

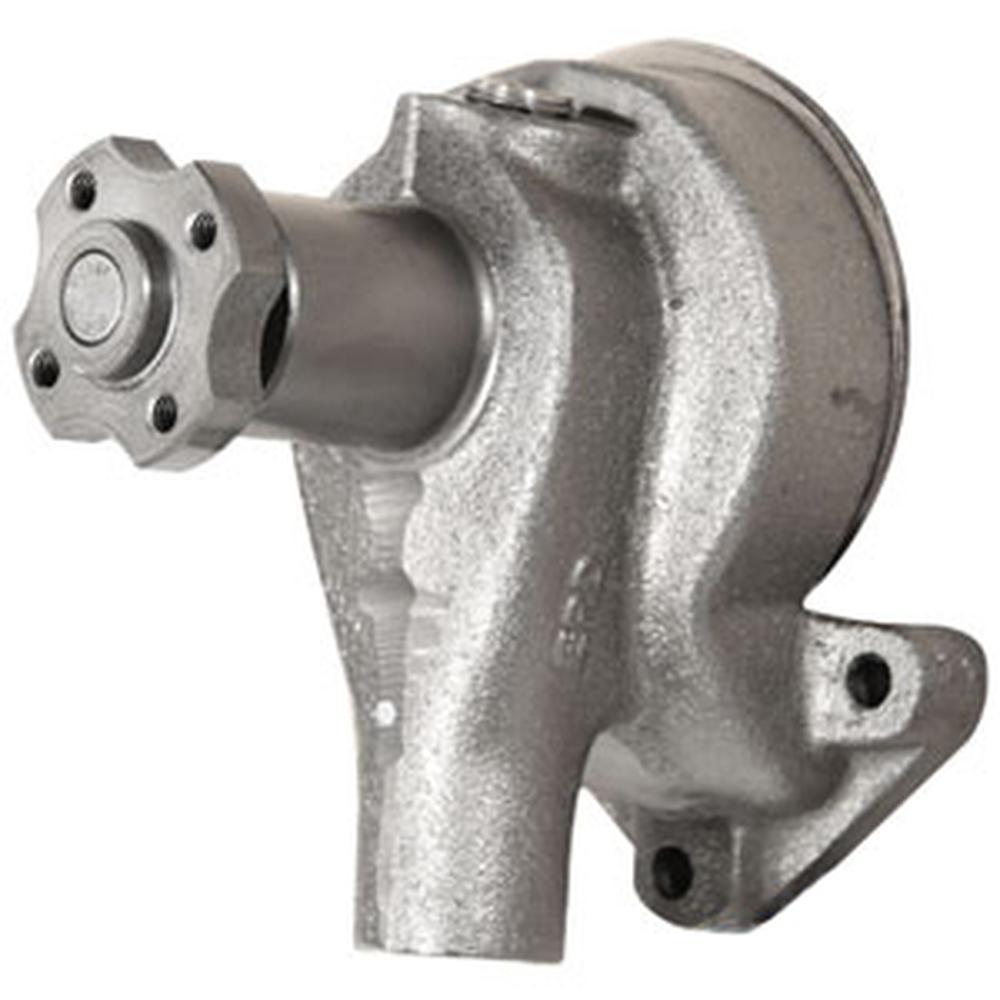

One New Aftermarket Replacement Water Pump for Allis Chalmers Tractors and Construction & Industrial Equipment

This aftermarket replacement water pump keeps the cooling system running on Allis Chalmers (AC) gas and LP engines across the popular W-series tractor line as well as compatible industrial and construction equipment. The pump includes a hub (pulley not included) and a mounting gasket, and is driven by a single-groove V-belt pulley. Casting reference CP-2016 (casting numbers 108317 and 125577).

Specifications

  • Drive Type: Pulley (single-groove V-belt)
  • Hub: Included
  • Pulley: Not included
  • Bypass Hole: 3/8"
  • Mounting: 3-bolt with gasket included
  • Casting Reference: CP-2016 (casting nos. 108317, 125577)
  • Engine Type: Gasoline / LP (LPG)

Compatible Models

Allis Chalmers Tractors: W201, W226, WC, WD, WD45 (Gas/LP), WF

Allis Chalmers Construction & Industrial: D, DG, M65, TL10, TL11, TL12

Allis Chalmers Motor Graders: D, M65

Allis Chalmers Combines / Other: SP100

Replaces Part Number(s):

108317, 205396, 226320, 004298, 0210758, 0226320, 70250396, 4004298, 79004298, 79009248, 79016822-GAS, 9004298, A1033323, D9004298, D912725, 79016822, 250396, 70226320

Aftermarket Interchange Numbers

Also replaces: 70210758, 70226320-R, 79016822-R, 79003712, 125577

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

Hub Backplate Gaskets for Agco-Allis WD, WD45 WF, W, 100, WD, WF, DG, WD45, D, TL11 TL12 D, TL12, W25, W201, SP100 TL10, WC, TL10, M65, TL11

Additional Information:

3 bolt gasket and 3/8" bypass hole Cast ref CP-2016 Includes hub, pulley not included Drive Type Pulley Gasket Included Pulley Type Single Groove V-Belt

Reference Numbers:

108317, 205396, 226320, 004298, 0210758, 0226320, 70250396, 4004298, 79004298, 79009248, 79016822-GAS, 9004298, A1033323, D9004298, D912725, D9004298 108317 125577 70226320 70250396 79003712 79004298 79016822 9004298, 226320, 79016822, 250396, 70250396, 70226320
