107-8504 Spindle Assembly Fits Toro Zero Turn Mower Z Master Z400 Z500 GrandStan
107-8504 Spindle Assembly Fits Toro Zero Turn Mower Z Master Z400 Z500 GrandStan
Couldn't load pickup availability

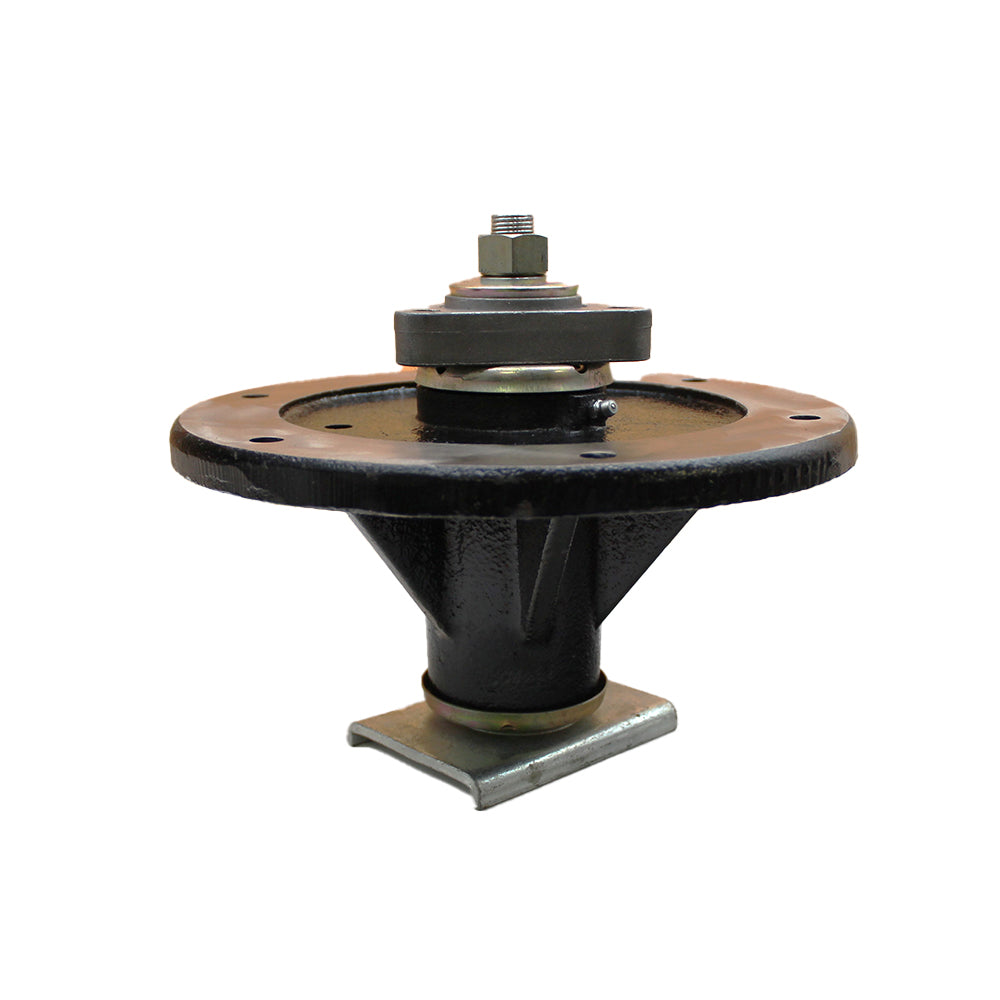

One New Aftermarket Replacement Spindle Assembly Fits Toro Z Master Zero-Turn Mowers
This aftermarket replacement spindle assembly Fits Toro Z Master Z400, Z500, and GrandStand zero-turn mowers with 48", 52", and 60" Turbo Force and 7-Gauge side-discharge cutting decks. The spindle assembly mounts to the mower deck housing and drives the cutting blade via belt and pulley. Important installation note: housing has no pre-drilled threads -- use self-tapping screws for mounting. Features a grease zerk for routine lubrication.
Specifications
- Housing Outer Diameter: 9-3/8"
- Overall Height: 7-1/2"
- Grease zerk included
- No threads in housing -- use self-tapping screws for installation
Compatible Models
Fits Toro Z Master Z400 Series: Z400, Z410, Z441, 74410 (Z400 52" 7-Gauge), 74412 (Z400 48" 7-Gauge), 74413 (Z449 48" Turbo Force), 74414, 74415, 74416, 74417, 74418
Fits Toro Z Master Z500 Series: Z449, Z450, Z453, Z500, 74248 (Z500 52"), 74249 (Z500 60"), 74291 (Z500 52"), 74292 (Z500 60")
Fits Toro Z Master Z528 Series: Z528, 74237 (Z528 52"), 74238 (Z528 60")
Fits Toro Z Master Z441 Series: Z441, 74441, 74442
Fits Toro GrandStand Series: 74448, 74449, 74558, 74559, 74568, 74569, 74901, 74903, 74915, 79558, 79559
Replaces Part Number(s):
107-8504, 1078504
Aftermarket Interchange Numbers
Fits Stens 285-881, Rotary 14703, J. Thomas LM0650, LAS20-0007
New aftermarket replacement part - not remanufactured, not used.
