1060956 Edge Cutting Fits Caterpillar Models
1060956 Edge Cutting Fits Caterpillar Models
Regular price
£240.00 GBP
Regular price
Sale price
£240.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

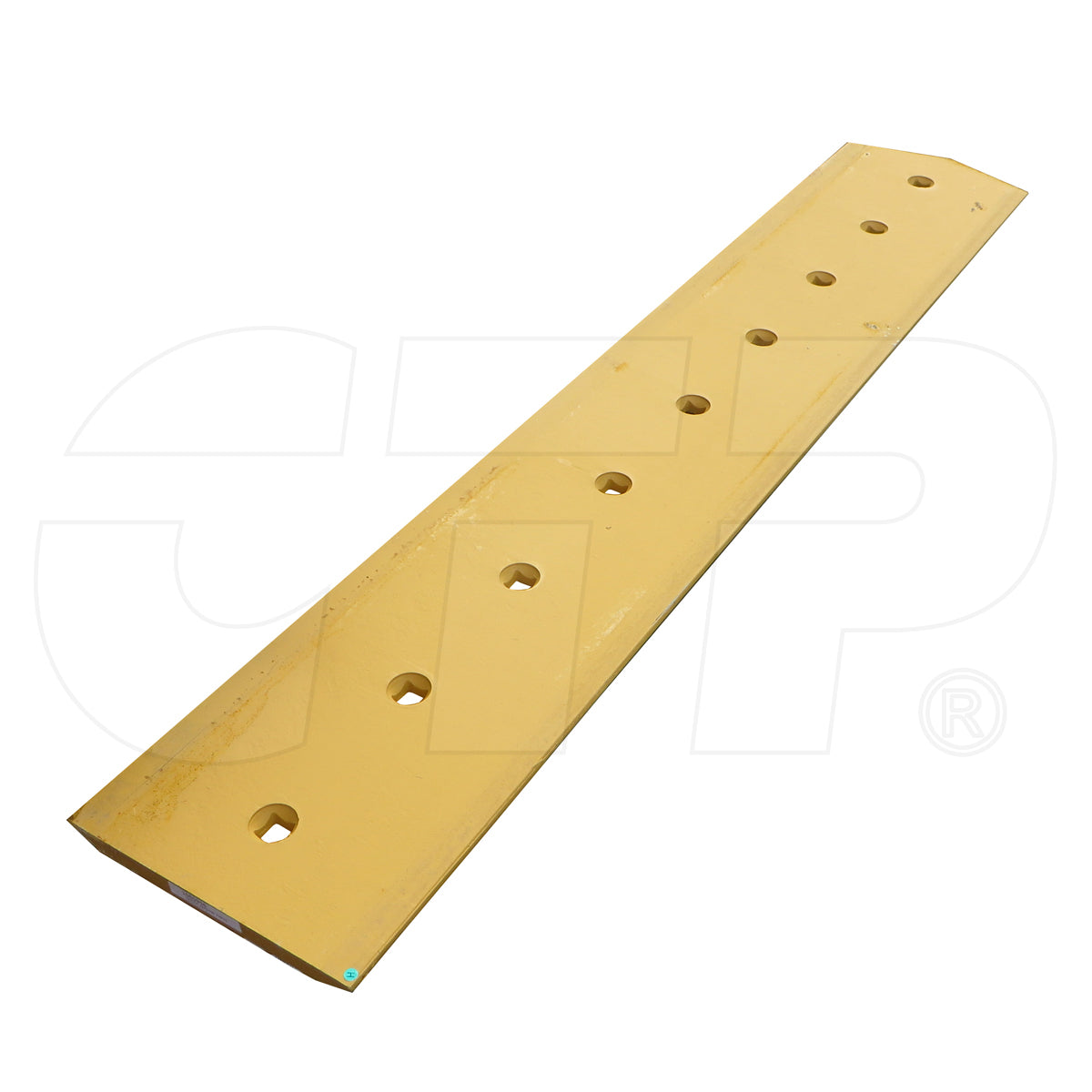

One New Aftermarket Replacement Cutting Edge for Caterpillar (Cat) D6 Series Track-Type Dozers
This bolt-on center cutting edge mounts to the dozer blade on Caterpillar D6 series track-type tractors. It is a double-beveled, reversible design made from high-spec alloy steel, allowing the edge to be flipped for extended service life before replacement. The edge seats against the blade with 9 plow bolts and hex nuts spaced 6 inches center-to-center.
Specifications
- Thickness: 0.75 in.
- Width: 10 in.
- Length: 54.375 in.
- Bolt holes: 9 holes, 3/4 in. diameter
- Bolt hole spacing: 6 in. center-to-center
- Edge-to-first-hole offset: 2.88 in.
- Weight: approx. 103 lbs.
- Style: Double-bevel, reversible, bolt-on center blade
- Hardware required: (9) 3/4 x 2-1/2 in. plow bolts, (9) 3/4 in. hex nuts (sold separately)
Compatible Models
Caterpillar D6 Series Track-Type Tractors: D6R, D6R II, D6R III, D6T, D6T LGP, D6T XL
Replaces Part Number(s):
1060956, 106-0956
Aftermarket Interchange Numbers
4T3030
New aftermarket replacement part - not remanufactured, not used.
