2 Brush Generator Kits Fits Delco Replaces 10467830

2 Brush Generator Kits Fits Delco Replaces 10467830

£29.00 GBP
£29.00 GBP
Sale Sold out
Shipping calculated at checkout.

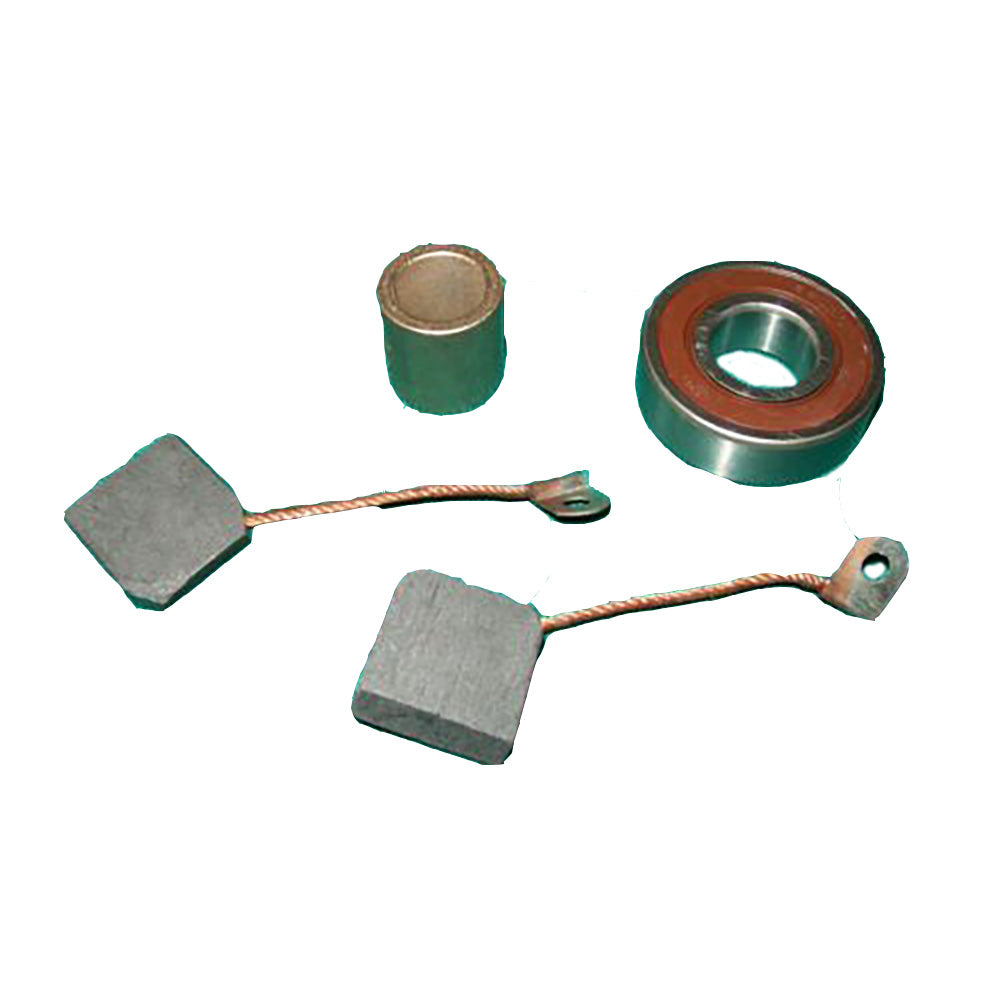

One New Aftermarket 2 Brush Generator Kits

Tech Info:
 -(1) Generator Bushing:
 -Bushing Size: Standard
 -Inner Diameter: 0.563" (14.300 mm)
 -Location Used: CE Housing
 -Outer Diameter: 0.783" (19.900 mm)
 -Width: 0.801" (20.350 mm)
 -Replaces Part Numbers:
 -1850786, 812823, D1634, GDR7100
 -
 -(1) Sealed Ball Bearing (Econ Version):
 -Inner Diameter: 0.669" (17mm)
 -Outer Diameter: 1.575" (40mm)
 -Width: 0.472" (12mm)
 -Bearing Type: Double Sealed
 -Replaces Part Numbers:
 -100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C
 -
 -(2) Generator Brush:
 -Height: 0.256" (6.500 mm)
 -Lead Length: 1.720" (43.700mm)
 -Length: 0.925" (23.500 mm)
 -Width: 0.866" (22 mm)
 -Replaces Part Numbers:
 -1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, R58

Made to Fit Delco:
 Other (Misc) Models: 1100021, 1100323, 1101866, 1102113, 1102661, 1102662, 1102663, 1102664, 1102665, 1102667, 1102668, 1102669, 1102670, 1102671, 1102672, 1102673, 1102674, 1102677, 1102678, 1102679, 1102680, 1102688, 1102691, 1102692, 1102693, 1102694, 1102697, 1102701, 1102708, 1102709, 1102712, 1102713, 1102714, 1102716, 1102718, 1102721, 1102722, 1102723, 1102724, 1102726, 1102730, 1102731, 1102732, 1102736, 1102738, 1102739, 1102741, 1102743, 1102746, 1102748, 1102751, 1102752, 1102754, 1102757, 1102761, 1102774, 1102776, 1102777, 1102799, 1102819, 1102976, 1102981, 1102985, 1102987, 1102996, 1103000, 1105851, 1105854, 1105855
 Model Breaks: 1100021 (35 AMPS, Clockwise Rotation, 6 VOLT),1100323 (25 AMPS, Clockwise Rotation, 12 VOLT),1101866 (8 AMPS, Clockwise Rotation, 12 VOLT),1102113 (30 AMPS, Clockwise Rotation, 12 VOLT),1102661 (30 AMPS, Clockwise Rotation, 6 VOLT),1102662 (30 AMPS, Clockwise Rotation, 6 VOLT),1102663 (30 AMPS, Clockwise Rotation, 6 VOLT),1102664 (30 AMPS, Clockwise Rotation, 6 VOLT),1102665 (30 AMPS, Clockwise Rotation, 6 VOLT),1102667 (30 AMPS, Clockwise Rotation, 6 VOLT),1102668 (30 AMPS, Clockwise Rotation, 6 VOLT),1102669 (30 AMPS, Clockwise Rotation, 6 VOLT),1102670 (30 AMPS, Clockwise Rotation, 6 VOLT),1102671 (30 AMPS, Clockwise Rotation, 6 VOLT),1102672 (30 AMPS, Clockwise Rotation, 6 VOLT),1102673 (30 AMPS, Clockwise Rotation, 6 VOLT),1102674 (30 AMPS, Clockwise Rotation, 6 VOLT),1102677 (25 AMPS, Clockwise Rotation, 6 VOLT),1102678 (30 AMPS, Clockwise Rotation, 6 VOLT),1102679 (30 AMPS, Clockwise Rotation, 6 VOLT),1102680 (30 AMPS, Clockwise Rotation, 6 VOLT),1102688 (25 AMPS, Clockwise Rotation, 6 VOLT),1102691 (30 AMPS, Clockwise Rotation, 6 VOLT),1102692 (30 AMPS, Clockwise Rotation, 6 VOLT),1102693 (30 AMPS, Clockwise Rotation, 6 VOLT),1102694 (30 AMPS, Clockwise Rotation, 6 VOLT),1102697 (30 AMPS, Clockwise Rotation, 6 VOLT),1102701 (30 AMPS, Clockwise Rotation, 6 VOLT),1102708 (40 AMPS, Clockwise Rotation, 6 VOLT),1102709 (40 AMPS, Clockwise Rotation, 6 VOLT),1102712 (30 AMPS, Clockwise Rotation, 6 VOLT),1102713 (30 AMPS, Clockwise Rotation, 6 VOLT),1102714 (30 AMPS, Clockwise Rotation, 6 VOLT),1102716 (30 AMPS, Clockwise Rotation, 6 VOLT),1102718 (40 AMPS, Clockwise Rotation, 6 VOLT),1102721 (30 AMPS, Clockwise Rotation, 6 VOLT),1102722 (30 AMPS, Clockwise Rotation, 6 VOLT),1102723 (30 AMPS, Clockwise Rotation, 6 VOLT),1102724 (30 AMPS, Clockwise Rotation, 6 VOLT),1102726 (25 AMPS, Clockwise Rotation, 6 VOLT),1102730 (30 AMPS, Clockwise Rotation, 6 VOLT),1102731 (45 AMPS, Clockwise Rotation, 6 VOLT),1102732 (30 AMPS, Clockwise Rotation, 6 VOLT),1102736 (30 AMPS, Clockwise Rotation, 6 VOLT),1102738 (30 AMPS, Clockwise Rotation, 6 VOLT),1102739 (30 AMPS, Clockwise Rotation, 6 VOLT),1102741 (40 AMPS, Clockwise Rotation, 6 VOLT),1102743 (30 AMPS, Clockwise Rotation, 6 VOLT),1102746 (40 AMPS, Clockwise Rotation, 6 VOLT),1102748 (40 AMPS, Clockwise Rotation, 6 VOLT),1102751 (30 AMPS, Clockwise Rotation, 6 VOLT),1102752 (40 AMPS, Clockwise Rotation, 6 VOLT),1102754 (40 AMPS, Clockwise Rotation, 6 VOLT),1102757 (40 AMPS, Clockwise Rotation, 6 VOLT),1102761 (30 AMPS, Clockwise Rotation, 6 VOLT),1102774 (45 AMPS, Clockwise Rotation, 6 VOLT),1102776 (30 AMPS, Clockwise Rotation, 6 VOLT),1102777 (45 AMPS, Clockwise Rotation, 6 VOLT),1102799 (18 AMPS, Clockwise Rotation, 6 VOLT),1102819 (30 AMPS, Clockwise Rotation, 6 VOLT),1102976 (20 AMPS, Clockwise Rotation, 12 VOLT),1102981 (20 AMPS, Clockwise Rotation, 12 VOLT),1102985 (20 AMPS, Clockwise Rotation, 12 VOLT),1102987 (20 AMPS, Clockwise Rotation, 12 VOLT),1102996 (20 AMPS, Clockwise Rotation, 12 VOLT),1103000 (20 AMPS, Clockwise Rotation, 12 VOLT),1105851 (40 AMPS, Clockwise Rotation, 6 VOLT),1105854 (25 AMPS, Clockwise Rotation, 6 VOLT),1105855 (25 AMPS, Clockwise Rotation, 6 VOLT)
 Replaces Part Number(s): 1850786, 812823, D1634, GDR7100, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705

Models This Part Fits:

1102670, 1102113, 1102736, 1102985, 1102726, 1102738, 1101866, 1102665, 1102709, 1102716, 1102691, 1102731, 1102712, 1102774, 1102752, 1102976, 1102692, 1102819, 1102713, 1102708, 1100323, 1102677, 1102672, 1102667, 1102757, 1102668, 1102761, 1102799, 1102697, 1102724, 1102996, 1102662, 1102688, 1103000, 1102722, 1102754, 1102741, 1102679, 1105851, 1102663, 1102674, 1102680, 1105855, 1102751, 1102746, 1102987, 1102701, 1105854, 1102721, 1102723, 1102678, 1102714, 1102718, 1102739, 1102743, 1102776, 1100021, 1102694, 1102777, 1102673, 1102664, 1102661, 1102693, 1102730, 1102671, 1102981, 1102669, 1102748, 1102732

Additional Information:

(1) Generator Bushing: Bushing Size: Standard Inner Diameter: 0.563" (14.300 mm) Location Used: CE Housing Outer Diameter: 0.783" (19.900 mm) Width: 0.801" (20.350 mm) Replaces Part Numbers: 1850786, 812823, D1634, GDR7100 (1) Sealed Ball Bearing (Econ Version): Inner Diameter: 0.669" (17mm) Outer Diameter: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C (2) Generator Brush: Height: 0.256" (6.500 mm) Lead Length: 1.720" (43.700mm) Length: 0.925" (23.500 mm) Width: 0.866" (22 mm) Replaces Part Numbers: 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, R58

Reference Numbers:

1850786, 812823, D1634, GDR7100, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705
