104496C2 Pressure Plate Fits Case-IH Tractor Models 3688 3688HC 986
104496C2 Pressure Plate Fits Case-IH Tractor Models 3688 3688HC 986
Regular price
£210.00 GBP
Regular price
Sale price
£210.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

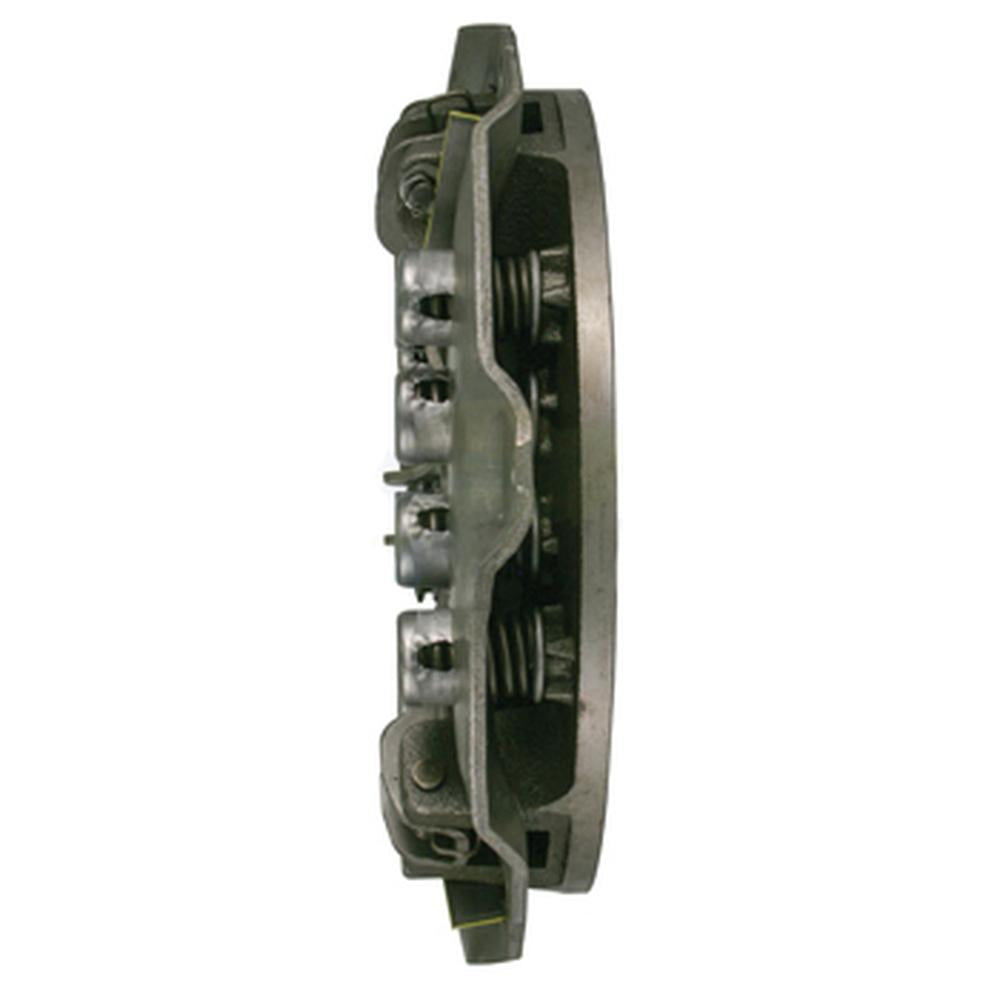

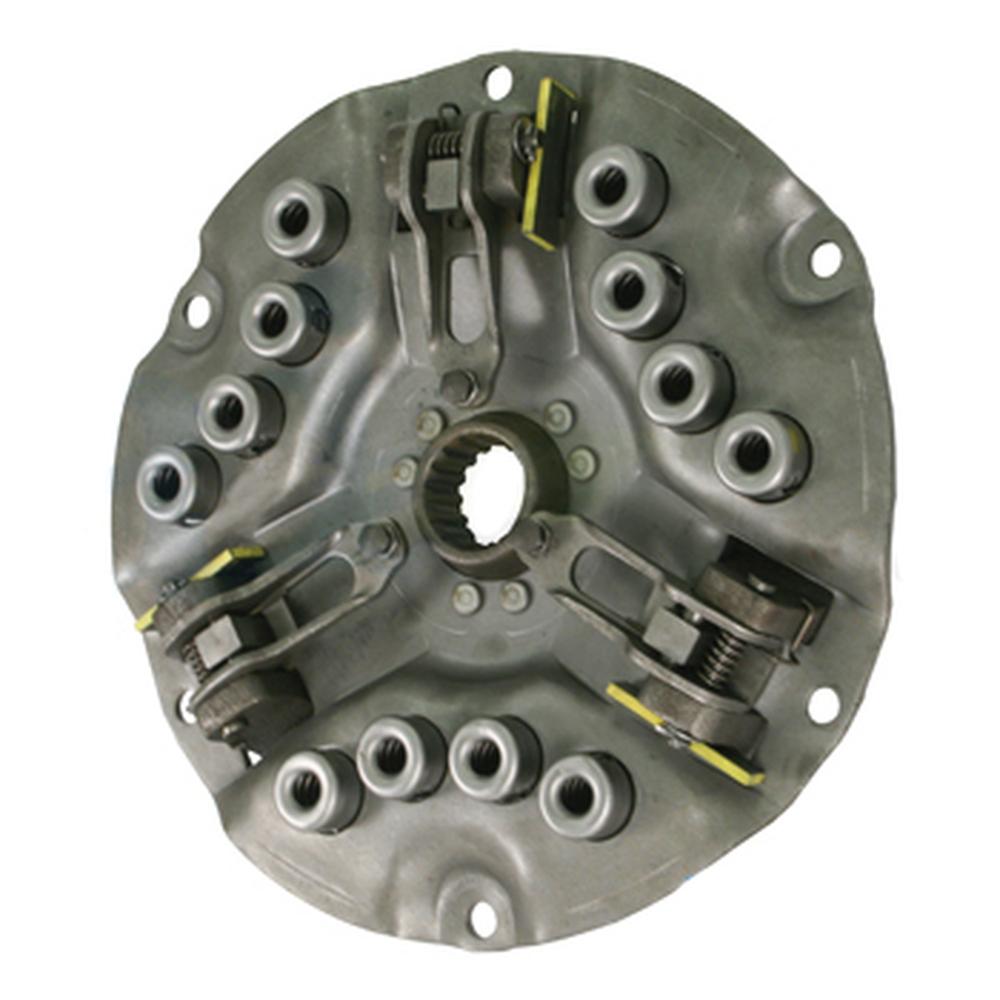

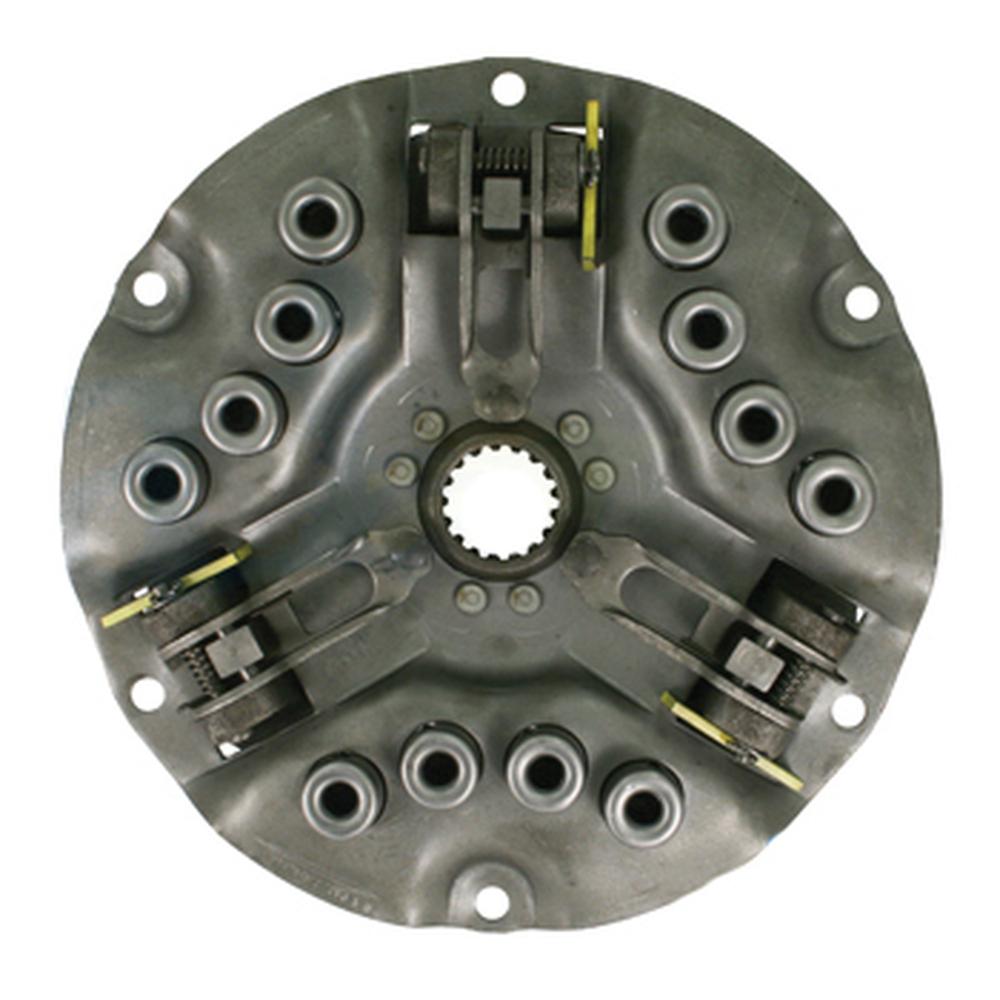

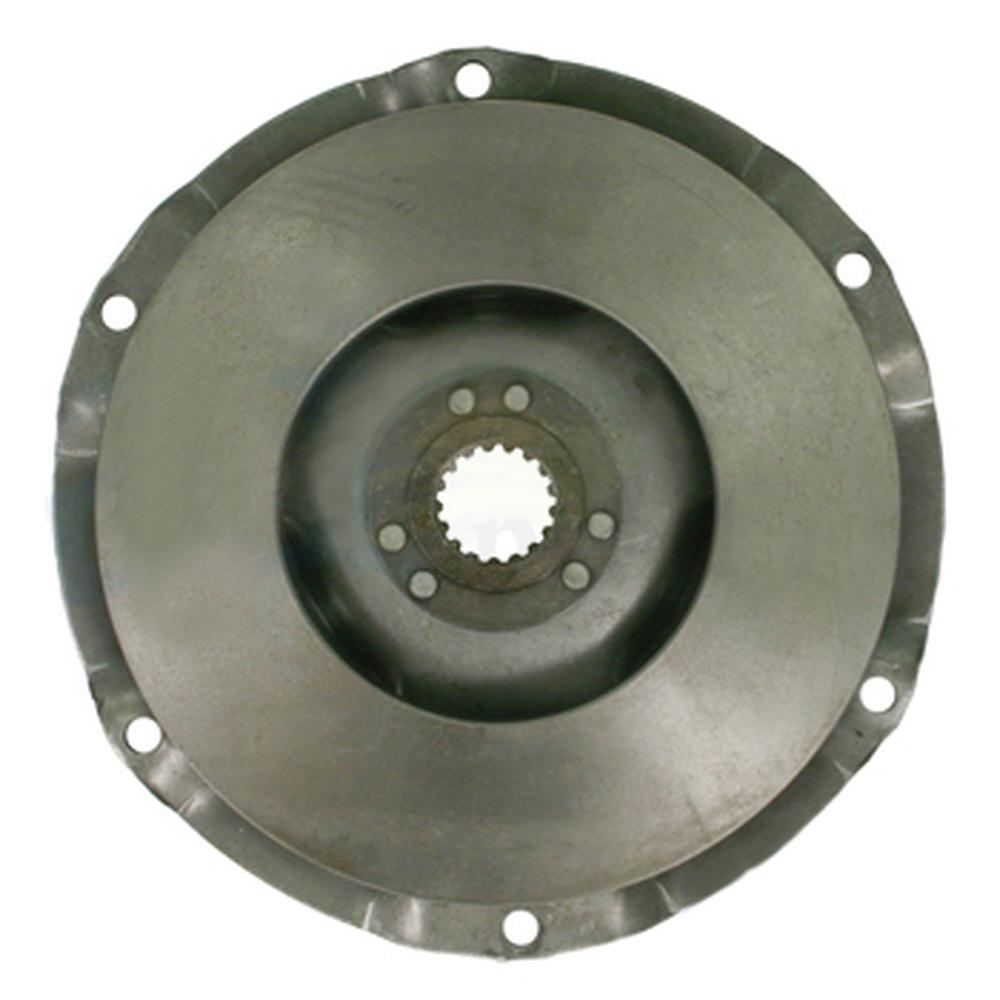

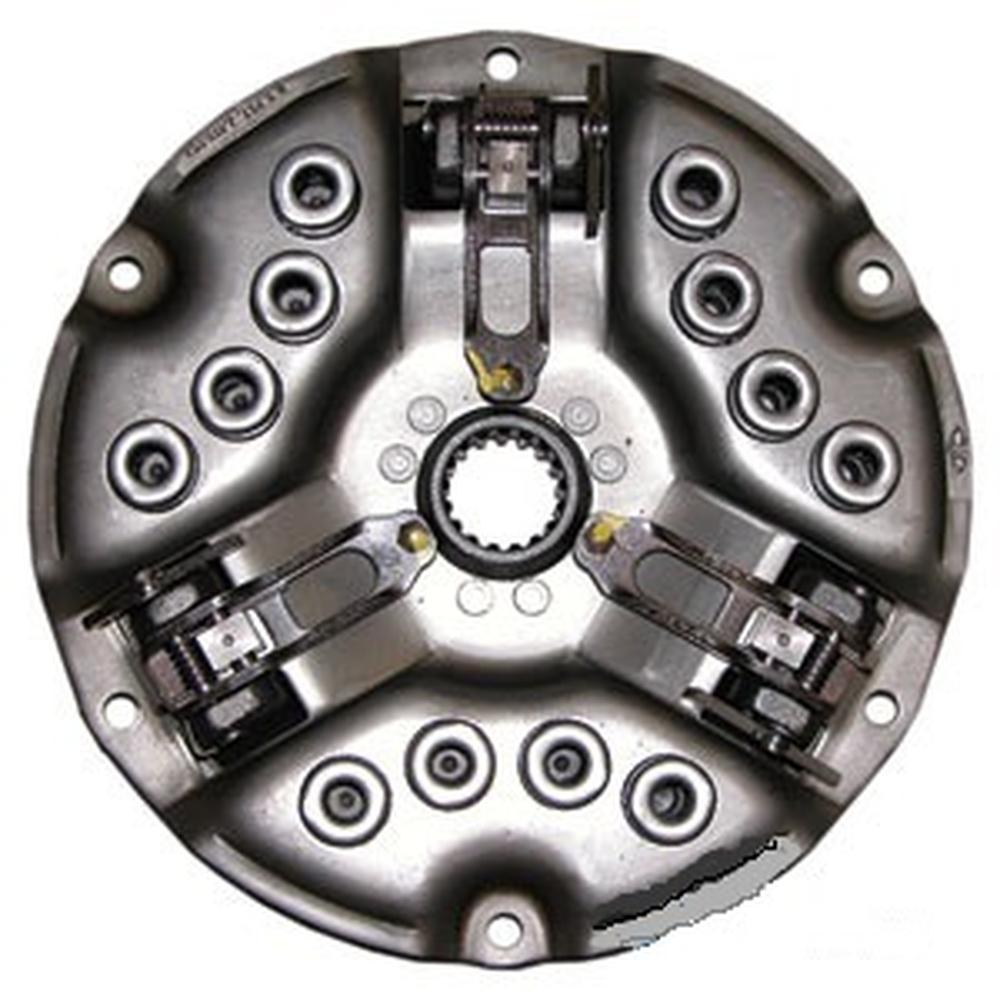

One New Aftermarket Replacement Pressure Plate Fits Case IH Tractors
This aftermarket replacement clutch pressure plate fits the single-stage clutch system on Fits International Harvester 986 and 3688 series tractors. It is a 12-inch pressure plate assembly used in the transmission clutch circuit. Note: if your tractor is equipped with hydraulic assist, use part number 67597 Kit instead. Converting to a 14-inch clutch is also an option using HH672215 Flywheel and 120181 Clutch Kit.
Specifications
- Clutch Diameter: 12"
- Spline Diameter: 1-3/4" (1.75")
- Spline Count: 17
- Type: Single Stage, Heavy Duty
- Flywheel Step Spec: 1.406"
- Spring Count: 12
Compatible Models
Fits Case IH: 986, 3688, 3688HC
Replaces Part Number(s):
104496C2
Aftermarket Interchange Numbers
104496C2R, 84354928, 104496KIT (clutch kit reference)
New aftermarket replacement part - not remanufactured, not used.
