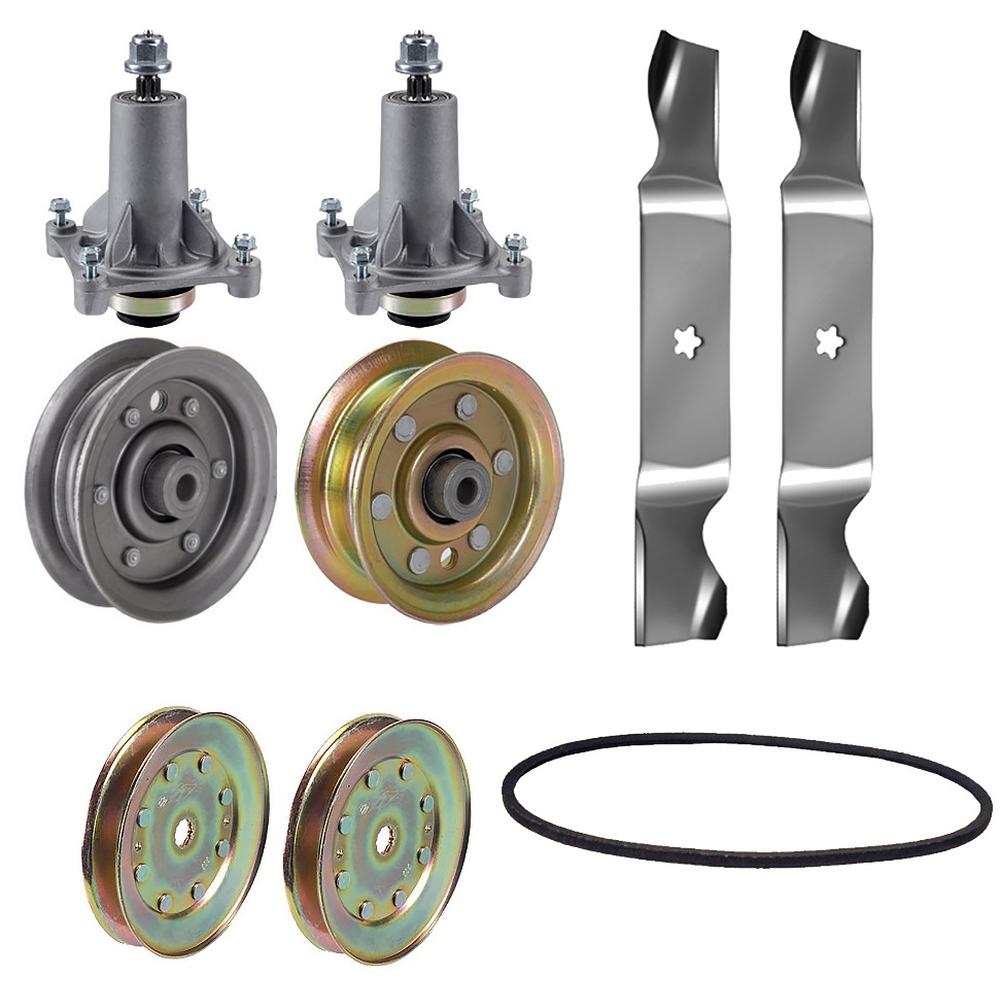

42" Rebuild Kit Fits AYP Replaces 104360X

One New Aftermarket 42" Rebuild Kit

Tech Info:
 -(2) Spindle Assemblies
 -4-Bolt Long Housing
 -5-Point Star Blade Mount
 -Threaded Mounting Holes for Easy Installation
 -Shaft is Splined for Spline-Type Pulleys
 -Pulley Lock Nut
 -Blade Bolt/Washer
 -Spacer
 -4 Mounting Bolts
 -Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301
 -
 -(2) Drive Pulleys
 -Outer Diameter: 5-1/6"
 -Inner Diameter: 9/16"
 -Steel
 -Replaces Part Number(s): 532129861, 532153535, 532173436, 539112171
 -
 -(2) Lawn Mower Blades
 -Type: Notched Fits Hi-Lift Blade
 -Length: 21"
 -Center Hole: 5 Point Star
 -Width: 2-1/4"
 -Thickness: 0.149"
 -Replaces Part Number(s): 532127843, 532138498, 532138971
 -
 -(1) Belt
 -Color Gray
 -Length: 97.5"
 -Material: Polyester Cord
 -Thickness: 0.444"
 -Type: Wrapped
 -Width: 5/8"
 -Replaces Part Number(s): 174883, 531300767, 532174883
 -
 -(1) Flat Idler Pulley
 -Flat Idler w/ Flanges
 -Steel
 -Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors.
 -3.875" (3 7/8'') Outer Diameter
 -.375'' (3/8") Inner Diameter
 -Replaces Part Number(s): 532131494, 532173438, 597025001
 -
 -(1) Flat Idler Pulley
 -Flat Idler w/ Flanges
 -Steel
 -3.06" Outer Diameter not including flange
 -3-7/8" Outside diameter with flanges
 -3/8" Inner Diameter
 -Replaces Part Number(s): 532 17 34-37, 532 17 34 37, 532173437

Fits AYP:
 Lawn/Garden Tractor Models: 42" Mower Decks
 Replaces Part Number(s): 104360X, 131494, 173438, 532173438, 173437, 532173437, 174883, 532174883, 127843, 134149, 138498, 138971, 138971X431, 531307224, 532134149, 532138971, 594892701, 917127843, 917131323, 917138498MS, 917532138498, 129861, 153535, 173436, 177865, 532173436, 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301
