1003237 Grommet Fits Caterpillar Models

One New Aftermarket Replacement Grommet for Caterpillar (Cat) Equipment

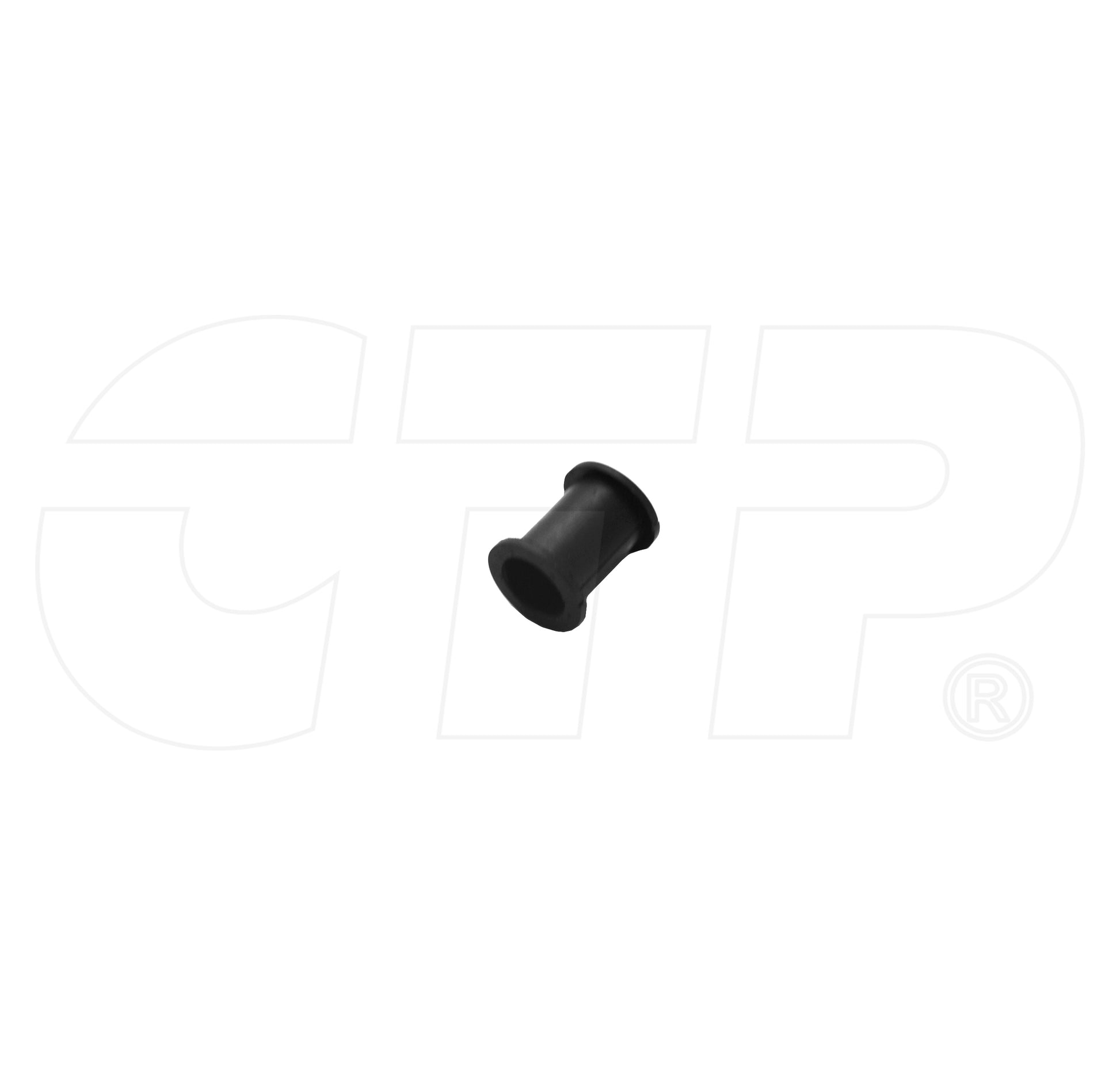

This aftermarket replacement grommet replaces Caterpillar OEM part number 1003237 (also formatted as 100-3237). It is a dual-flange split grommet used across a wide range of Caterpillar equipment including excavators, track-type tractors, off-highway trucks, wheel loaders, generator sets, and industrial engines. The grommet is commonly found in engine, transmission, and axle applications as a sealing and wire/hose routing component.

Specifications

• Inner Diameter: 15.60 mm
• Larger Outer Diameter: 24 mm
• Smaller Outer Diameter: 18.85 mm
• Groove Width: 23 mm
• Thickness: 29 mm
• Split: Yes
• Radiused Chamfer: No
• Dimensions: 1.13 x 0.91 x 1.13 in.
• Weight: 0.01 lbs.

Compatible Models

Caterpillar Excavators: 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 365C, 365C L, 365C L MH, 374D L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 568 FM LL

Caterpillar Track-Type Tractors: D1, D2, D3, D6, D6 XE, D6T, D6T LGP, D6T LGPPAT, D6T XL, D6T XL PAT, D6T XW, D6T XW PAT, D6XE, D7E, D7E LGP, D8T, D9, D9 GC, D9R, D9T, D11N, D11R

Caterpillar Off-Highway Trucks: 773G, 773G LRC, 773G OEM, 775G, 775G LRC, 775G OEM, 776C, 776D, 777, 777B, 777C, 777D, 784B, 784C, 785, 785B, 785C, 785D, 785G, 789, 789B, 789C, 789D, 789G, 793, 793B, 793C, 793D, 793F, 793F CMD, 794 AC, 796 AC, 797, 797B, 797F, 798 AC

Caterpillar Wheel Loaders: 904B, 966, 966K, 966K XE, 966L, 966M, 966M XE, 966XE, 972, 972K, 972L, 972M, 972M XE, 972XE, 980H, 990K, 992G, 994D, 994F, 994H, 994K

Caterpillar Generator Sets / Gen Set Engines: 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B, 3516C, C175-20, C32, G3516C, G3516E, G3520C, G3520E, SR4, SR4B, SR4BHV, SR5

Caterpillar Industrial Engines: 3508, 3508B, 3512, 3512B, 3512C, 3516, 3516B, C27, C32

Caterpillar Petroleum / Marine: 3508PETROL, 3512PETROL, 3516C, C7, C27, C32, CX35-P800, TH48, TH48-E70, TH48-E80

Caterpillar Pipelayers / Other: 527, 568 FM LL, 2864C

Caterpillar Landfill Compactors: 826H, 826K

Caterpillar Wheel-Type Scrapers: 621, 621K, 623, 623K, 623K LRC, 627, 627K, 627K LRC, 631, 631K, 632, 637, 637K

Caterpillar Front Shovels / Mining Shovels: 6030, 6040, 6040 FS, 6060

Replaces Part Number(s):

1003237, 100-3237

Aftermarket Interchange Numbers

CA1003237

New aftermarket replacement part - not remanufactured, not used.
