Brush Generator Kit Fits Toro Replaces 100-1048

Brush Generator Kit Fits Toro Replaces 100-1048

£38.00 GBP
£38.00 GBP
Sale Sold out
Shipping calculated at checkout.

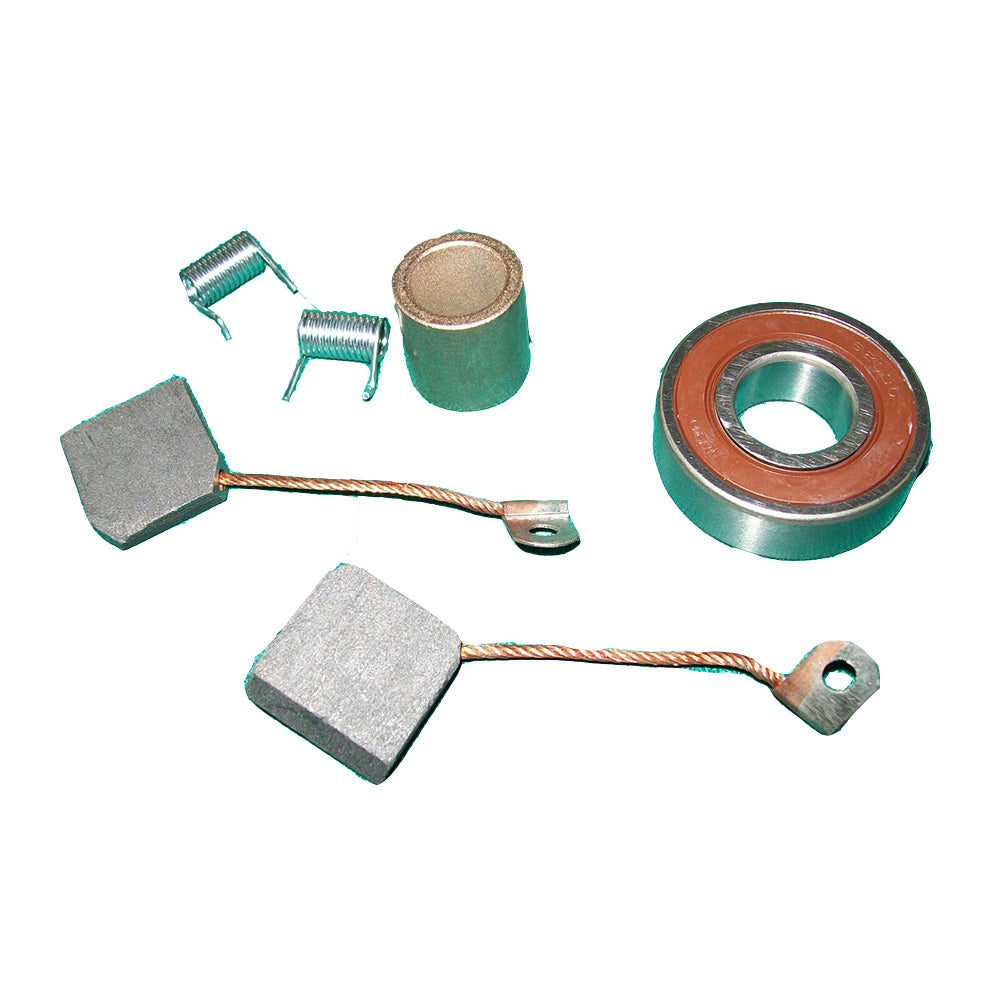

One New Aftermarket Brush Generator Kit

Tech Info:
 -(2) Delco Brush Spring
 -Description: Brush Spring
 -Unit Type: Generators
 -Notes: For Use with OEM Brush Holders
 -Application: Delco Generators
 -Replaces Part Numbers: 1856992,1903720,1908829
 -
 -(1) Generator Bushing
 -Commuter End Housing Bushing
 -
 -ID: .56"
 -OD: .78"
 -Width: .8"
 -Replaces Part Numbers: 133-12053-5, GDR7100
 -
 -(1) Sealed Ball Bearing (Econ Version)
 -ID: 0.669" (17mm)
 -OD: 1.575" (40mm)
 -Width: 0.472" (12mm)
 -Bearing Type: Double Sealed
 -Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581
 -
 -(2) Generator Brush
 -Tech Info:
 -Voltage: 12
 -Length: 0.787in / 20mm
 -Width: 0.866in / 22mm
 -Height: 0.256in / 6.5mm
 -Lead Length: 1.378in / 35mm
 -Replaces part Number: 1850761,1850768,1853611,1857962

Made to Fit Toro:
 Models: S-200, S-620 CCR2000 223D, 5100D, 5200D, 5210, 5300D, 5400D, 5410, 5510, 5610, 6500D and 6700D; 3500D, 3505D, 4500D, 4700D, 2004 and newer
 Replaces Part Number(s): 100-1048, 109966, 112-0423, 38-7820, 702581

Models This Part Fits:

4700D, S-200, 3505D, 5410, 5510, 5300D, 5400D, 5210, 2004 and newer, 5100D, 5610, 6500D and 6700D; 3500D, S-620 CCR2000 223D, 5200D, 4500D

Additional Information:

(2) Delco Brush Spring Description: Brush Spring Unit Type: Generators Notes: For Use with OEM Brush Holders Application: Delco Generators Replaces Part Numbers: 1856992,1903720,1908829 (1) Generator Bushing Commuter End Housing Bushing ID: .56" OD: .78" Width: .8" Replaces Part Numbers: 133-12053-5, GDR7100 (1) Sealed Ball Bearing (Econ Version) ID: 0.669" (17mm) OD: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581 (2) Generator Brush Tech Info: Voltage: 12 Length: 0.787in / 20mm Width: 0.866in / 22mm Height: 0.256in / 6.5mm Lead Length: 1.378in / 35mm Replaces part Number: 1850761,1850768,1853611,1857962

Reference Numbers:

100-1048, 109966, 112-0423, 38-7820, 702581

Product Category:

Agriculture
View More: Agriculture Replacement Parts

Product Sub Group:

Other Electrical Components
View More: Other Electrical Components Replacement Parts
