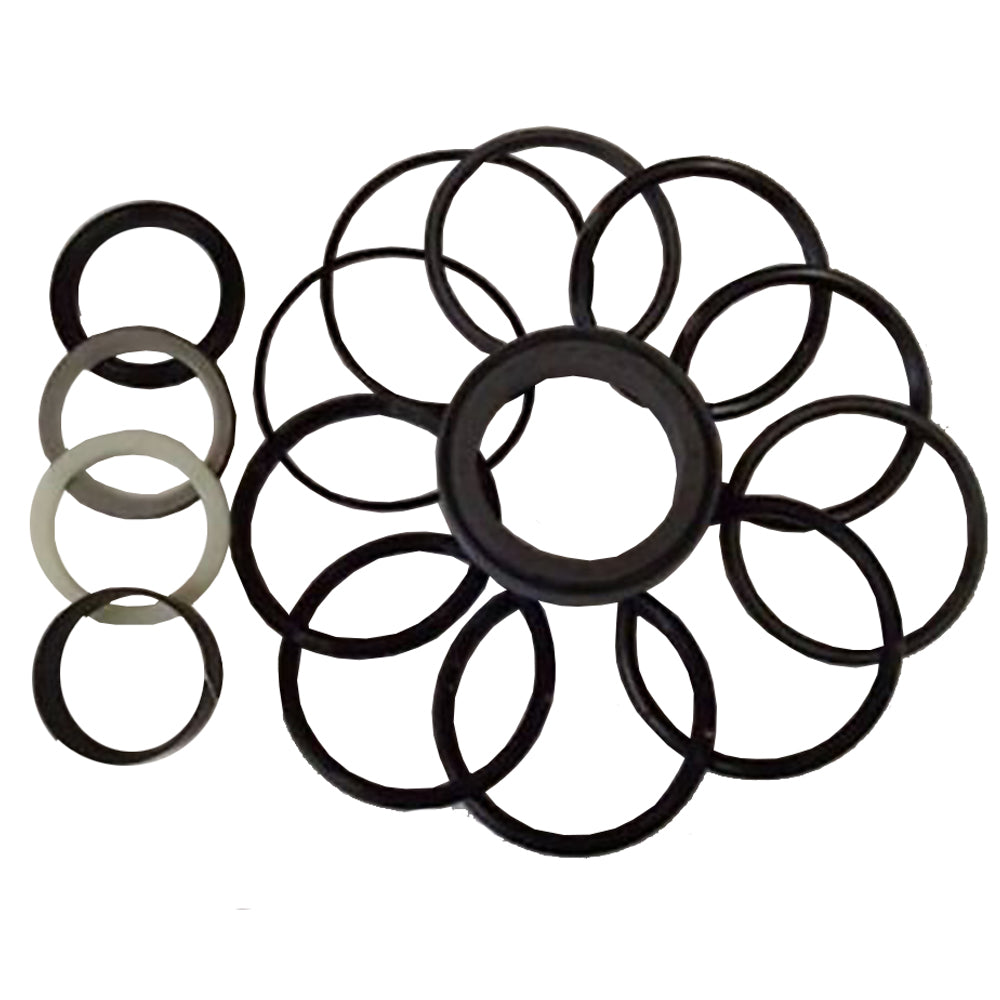

04655-20030-71 Cylinder Seal Kit 30mm Rod 70mm Bore Fits Toyota Forklift

One New Aftermarket Replacement Tilt Cylinder Seal Kit Fits Toyota Forklift 5FD/5FG and 6FD/6FG Series

This aftermarket replacement mast tilt cylinder seal kit Fits Toyota forklifts equipped with a 30 mm rod and 70 mm bore tilt cylinder. The kit supplies all the seals and O-rings needed to rebuild and restore the hydraulic tilt cylinder, stopping fluid leaks and returning full mast tilt function. Fits Toyota 5FD, 5FG, 5FDU, 5FGU, 6FD, 6FG, 6FDU, and 6FGU series forklifts running 1DZ, 2Z, 4Y, 5K, 1Z, 4P, and 2J engines.

Specifications

• Rod Diameter: 30 mm
• Bore Diameter: 70 mm
• Application: Mast Tilt Cylinder

Compatible Models

Fits Toyota 5FD/5FG Series: 5FD10, 5FD14, 5FD15, 5FD18, 5FD20, 5FD23, 5FD25, 5FD28, 5FD30, 5FG10, 5FG14, 5FG15, 5FG18, 5FG20, 5FG23, 5FG25, 5FG28, 5FG30, 02-5FD10, 02-5FD14, 02-5FD15, 02-5FD18, 02-5FD20, 02-5FD23, 02-5FD25, 02-5FD28, 02-5FD30, 02-5FG10, 02-5FG14, 02-5FG15, 02-5FG18, 02-5FG20, 02-5FG23, 02-5FG25, 02-5FG28, 02-5FG30, 04-5FD28, 04-5FD30, 04-5FG20, 04-5FG23, 04-5FG25, 04-5FG28, 04-5FG30, 40-5FG10, 40-5FG14, 40-5FG15, 40-5FG18, 40-5FG20, 40-5FG23, 40-5FG25, 42-5FG10, 42-5FG14, 42-5FG15, 42-5FG18, 42-5FG20, 42-5FG23, 42-5FG25, 60-5FD20, 60-5FD23, 60-5FD25, 60-5FD28, 60-5FD30, 62-5FD20, 62-5FD23, 62-5FD25, 62-5FD28, 62-5FD30

Fits Toyota 5FDU/5FGU Series: 02-5FDU15, 02-5FDU18, 02-5FDU20, 02-5FDU25, 02-5FDU30, 42-5FGU10, 42-5FGU15, 42-5FGU18, 42-5FGU20, 42-5FGU25, 02-5FGU30

Fits Toyota 6FD/6FG Series: 6FD10, 6FD14, 6FD15, 6FD18, 6FD20, 6FD23, 6FD25, 6FD28, 6FD30, 6FG10, 6FG14, 6FG15, 6FG18, 6FG20, 6FG23, 6FG25, 6FG28, 6FG30, 02-6FD10, 02-6FD14, 02-6FD15, 02-6FD18, 02-6FD20, 02-6FD23, 02-6FD25, 02-6FG10, 02-6FG14, 02-6FG15, 02-6FG18, 02-6FG20, 02-6FG23, 02-6FG25, 40-6FG10, 40-6FG14, 40-6FG15, 40-6FG18, 42-6FG10, 42-6FG14, 42-6FG15, 42-6FG18, 60-6FD20, 60-6FD23, 60-6FD25, 62-6FD20, 62-6FD23, 62-6FD25

Fits Toyota 6FDU/6FGU Series: 02-6FDU15, 02-6FDU18, 02-6FGU30, 42-6FGU10, 42-6FGU15, 42-6FGU18, 42-6FGU20, 42-6FGU25

Replaces Part Number(s):

04655-20030-71, 04655-2003071, 046552003071, 1-04655-20030-71

New aftermarket replacement part - not remanufactured, not used.
