0L2315 Cap Screw Fits Caterpillar Models

One New Aftermarket Replacement Cap Screw for Caterpillar (Cat) Equipment

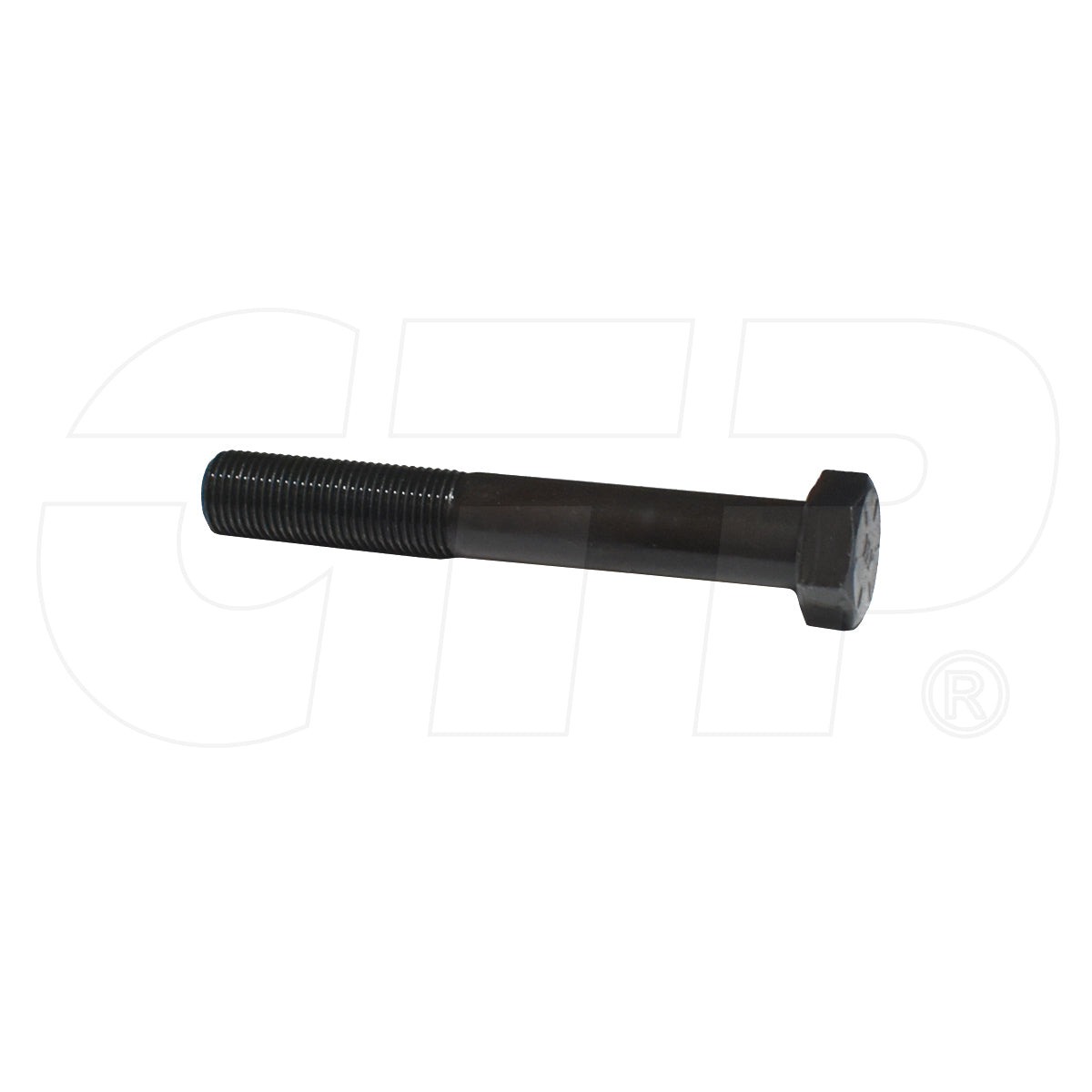

This aftermarket replacement hex head cap screw (bolt) is a direct replacement for Caterpillar OEM part number 0L-2315. It is a 1/2"-20 UNF (fine thread) hex head bolt measuring 3-1/2 inches in total length, finished with a phosphate and oil coating for corrosion resistance. This general-purpose fastener is used across a wide range of Caterpillar construction and earthmoving equipment.

Specifications

• Part Type: Hex Head Cap Screw / Bolt
• Thread Size: 1/2"-20 UNF (Fine Thread)
• Total Length: 3-1/2 in. (88.90 mm)
• Grip Length: 2.25 in.
• Head Width: 0.75 in.
• Head Height: 0.39 in.
• Finish: Phosphate and Oil Coated
• Measurement System: Inch

Compatible Models

Caterpillar Motor Graders: 120, 120B, 120G, 120M, 12E, 12F, 12G, 12M, 130G, 140, 140B, 140G, 14E, 14G, 14H, 14H NA, 160G, 16G, 16H, 16H NA

Caterpillar Compactors / Landfill: 816F, 816F II, 836

Caterpillar Articulated Dump Trucks: D250E, D250E II, D300E, D300E II, D350E, D350E II, D400E, 772

Caterpillar Scrapers / Elevating Scrapers: 508, 518, 518C, 57, 578, 58, 594H, 611, 613, 613B, 615, 615C, 657B, 814B

This bolt is a widely used Caterpillar fastener that appears across many additional Cat machine families. Verify your specific application using your machine serial number and parts manual.

Replaces Part Number(s):

0L2315, 0L-2315

New aftermarket replacement part - not remanufactured, not used.
