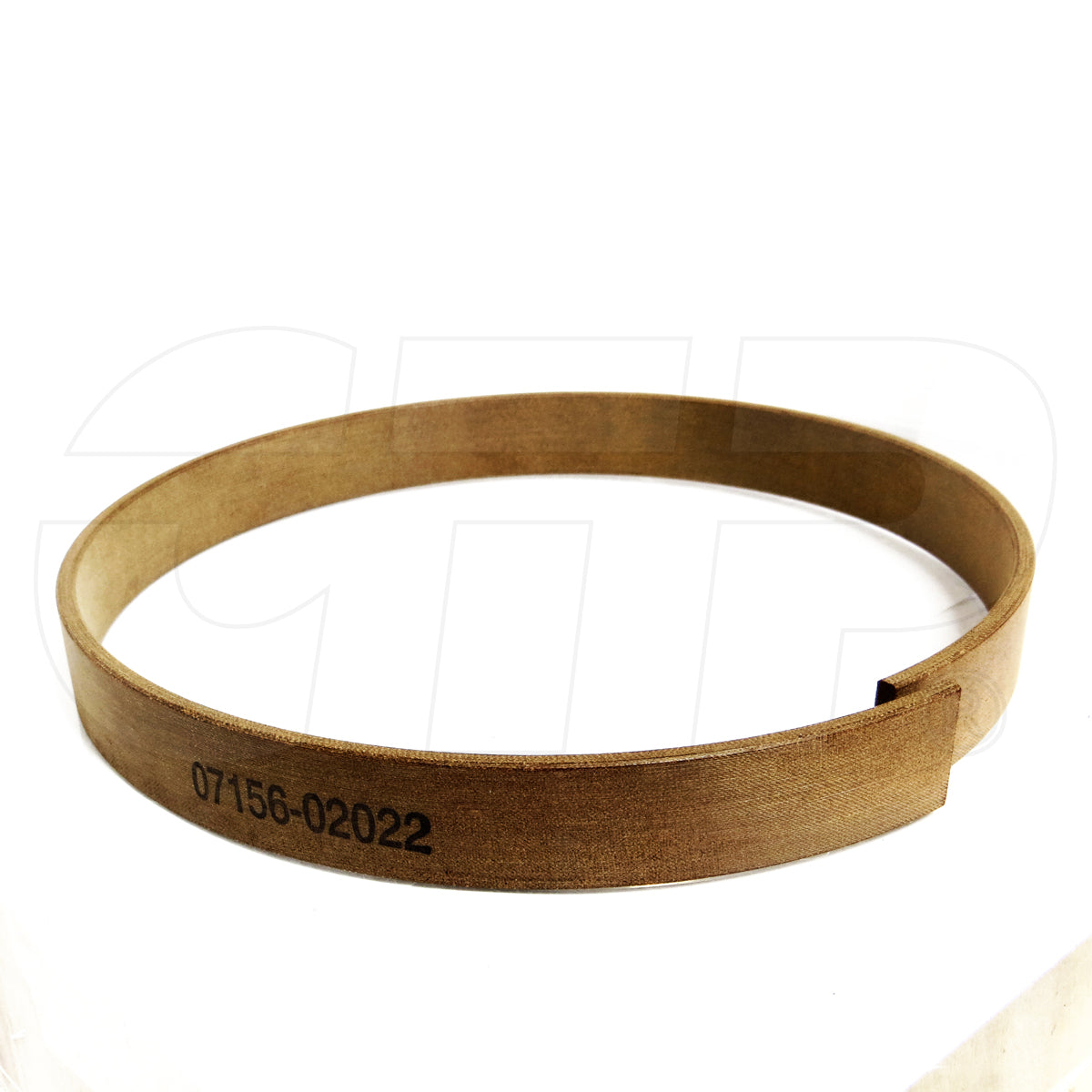

07156-02022 Wear Ring Fits Komatsu Models

One New Aftermarket Replacement Wear Ring for Komatsu Construction Equipment

This aftermarket replacement hydraulic wear ring (also called a guide ring) fits the hydraulic cylinder assemblies on a wide range of Komatsu construction equipment, including excavators, bulldozers, wheel loaders, and compactors. The wear ring guides the piston and rod within the hydraulic cylinder, absorbing lateral and transverse forces while preventing metal-to-metal contact between moving components. Proper wear ring condition protects cylinder walls, reduces seal wear, and maintains hydraulic system performance.

Specifications

• Part Type: Metric Hydraulic Wear Ring (Guide Ring)
• Material: Nylon
• Dimensions: 200mm Inner Diameter x 22mm Width x 4mm Cross Section
• Weight: Approx. 0.2 lbs.
• Note: Part of hydraulic cylinder seal kit K31; also appears in boom cylinder, bucket cylinder, dump cylinder, and lift cylinder assemblies depending on model

Compatible Models

Komatsu Excavators: PC400-1 (S/N 10001-UP), PC650-1 (S/N 10007-UP)

Komatsu Bulldozers: D155A-3 (S/N 60001-UP), D155A-5, D155AX-3 (S/N 60001-UP)

Komatsu Wheel Loaders: WA320PT-5L, WA350-1, WA380-5 (S/N 60001-UP, Overseas Version), WA380-5-SN (S/N 60001-UP), WA400-3, WA400-6, WA400-7, WA420-3, WA420-4, WA450-4, WA450-5, WA450L, WA470-3, WA470-5, BP500-3 (S/N 15001-UP)

Komatsu Compactors: WF450-3 (S/N 54001-UP), WF450-3 Komatsu Hanomag Germany version, WF550-3D

Dressta Wheel Loaders: 545 (S/N U005001-U005100 and C005101-UP), 558 (S/N U006001-U006026)

Replaces Part Number(s):

07156-02022

Aftermarket Interchange Numbers

KOM-07156-02022; WR-NYL-200x22x4-C/S

New aftermarket replacement part - not remanufactured, not used.
