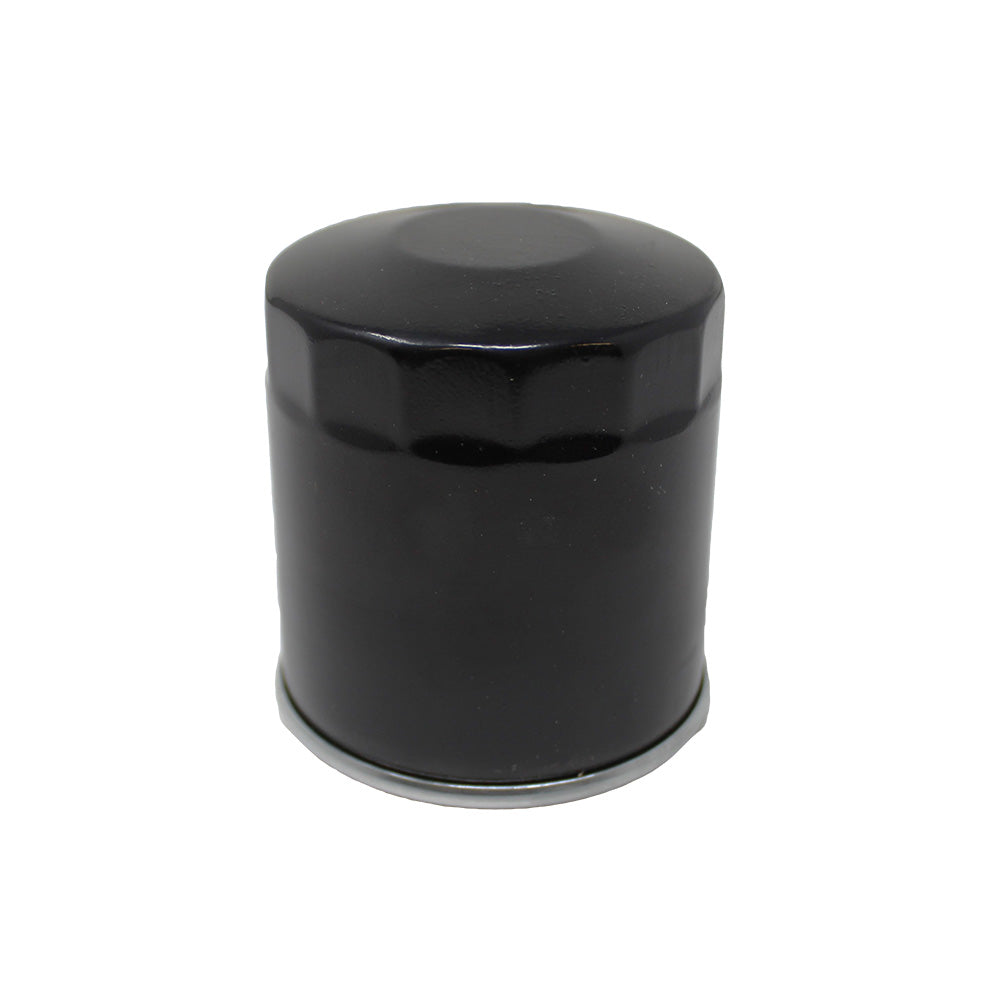

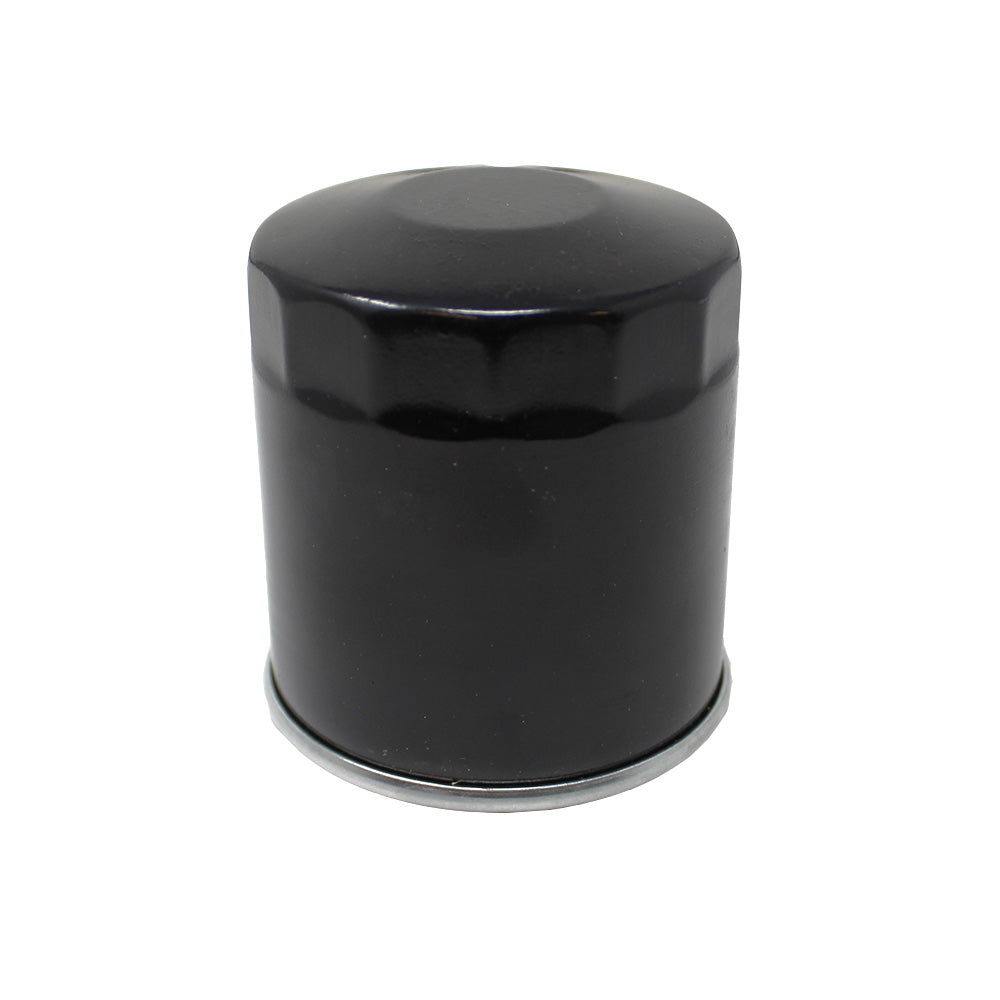

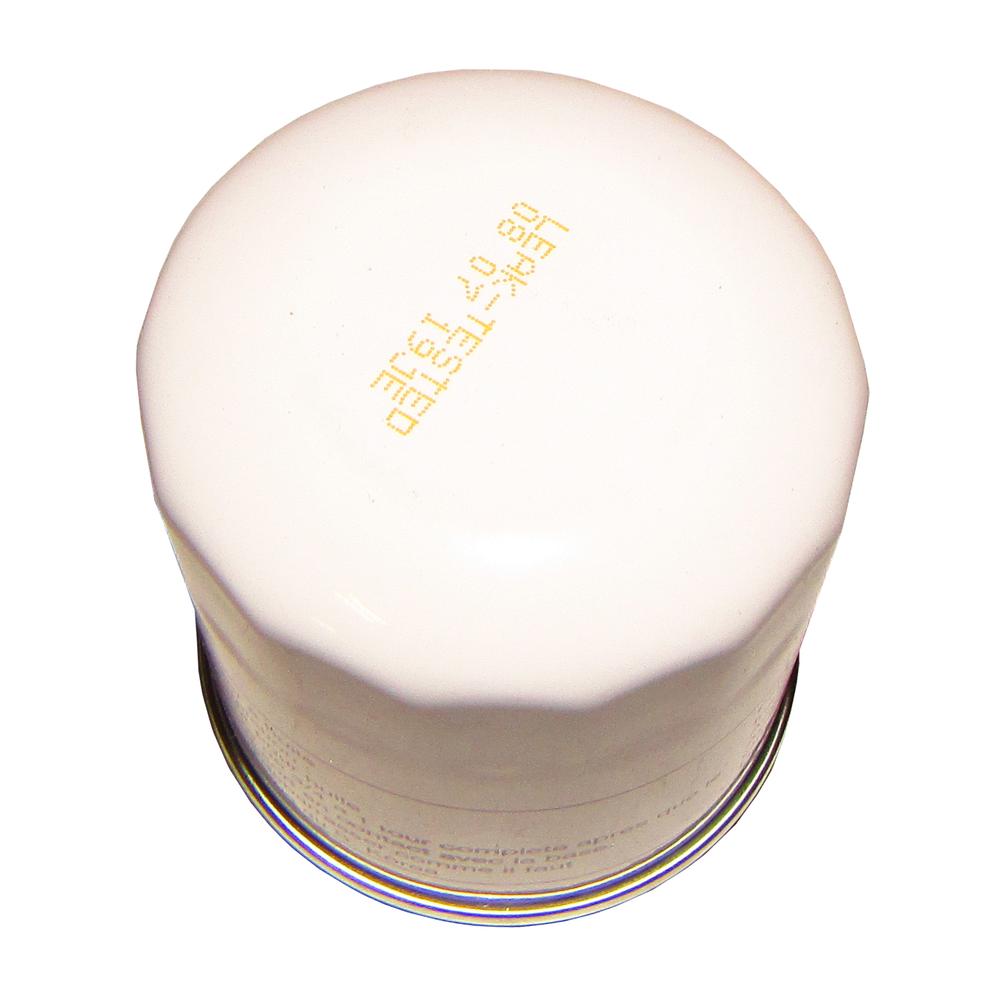

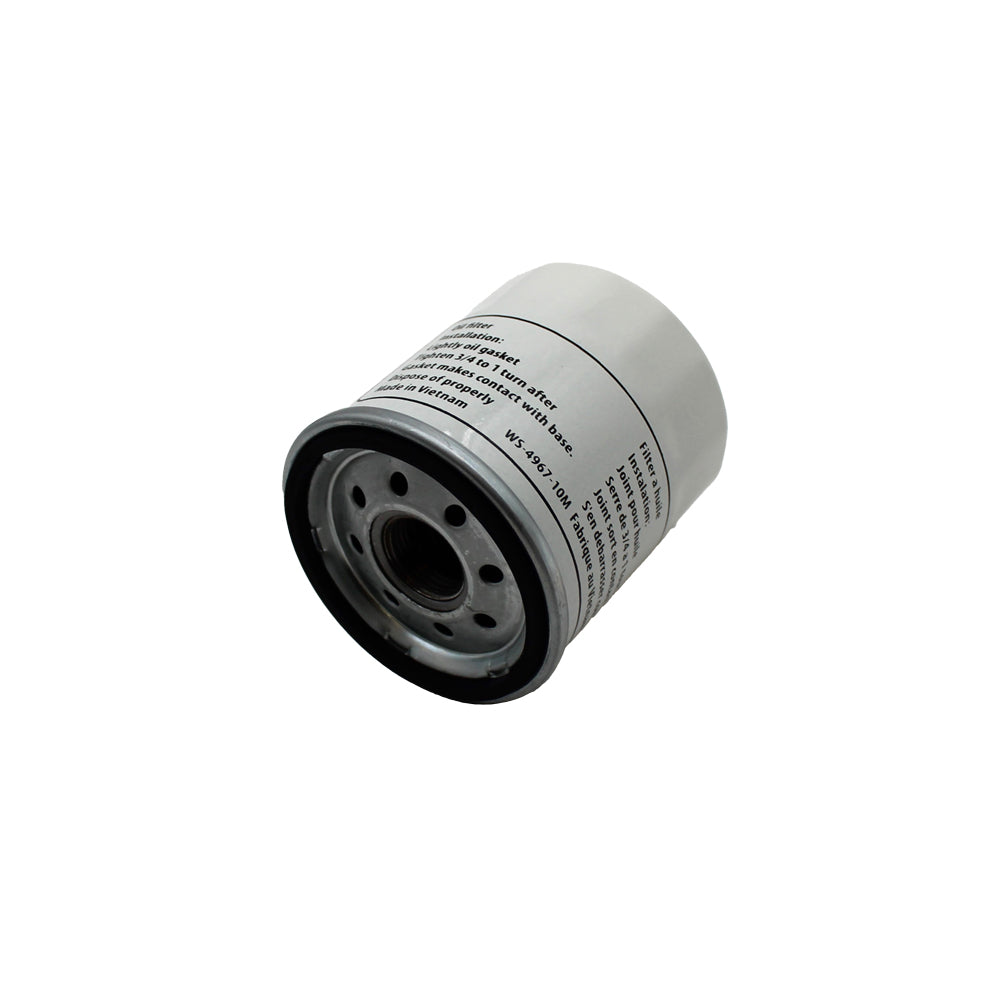

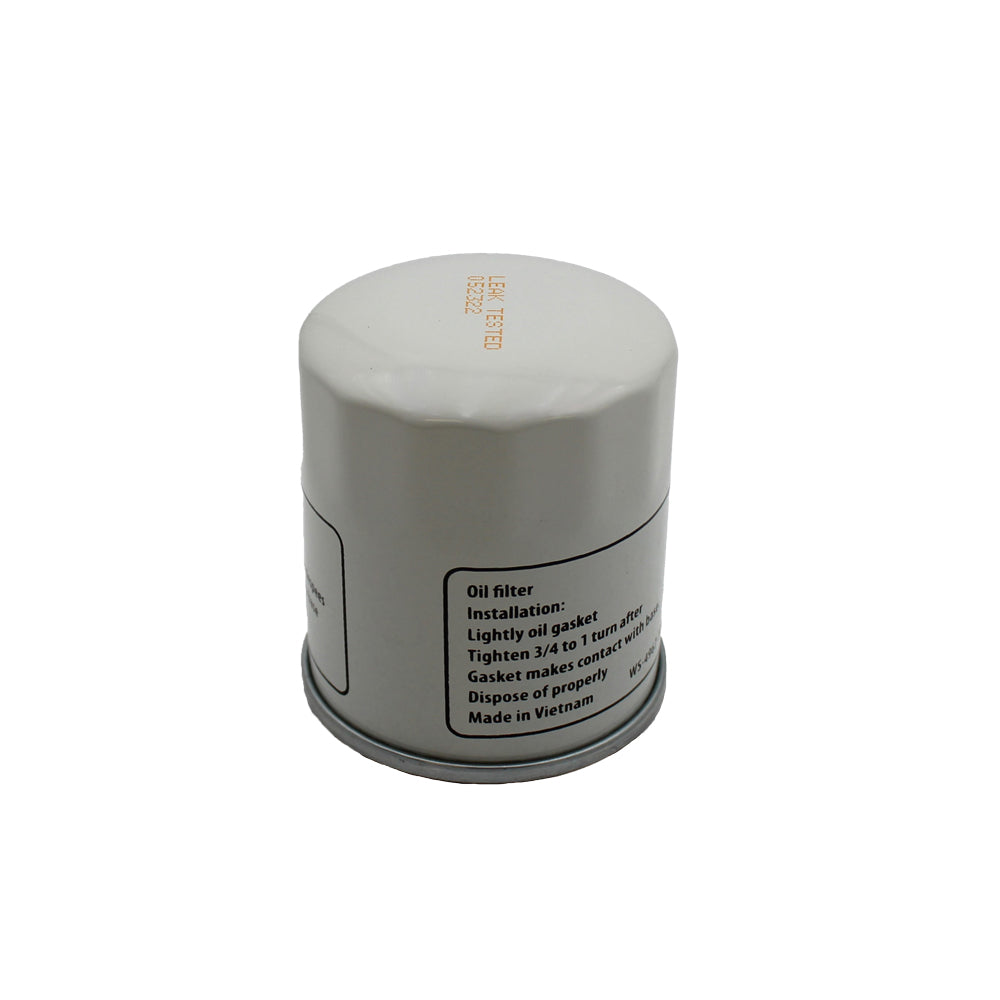

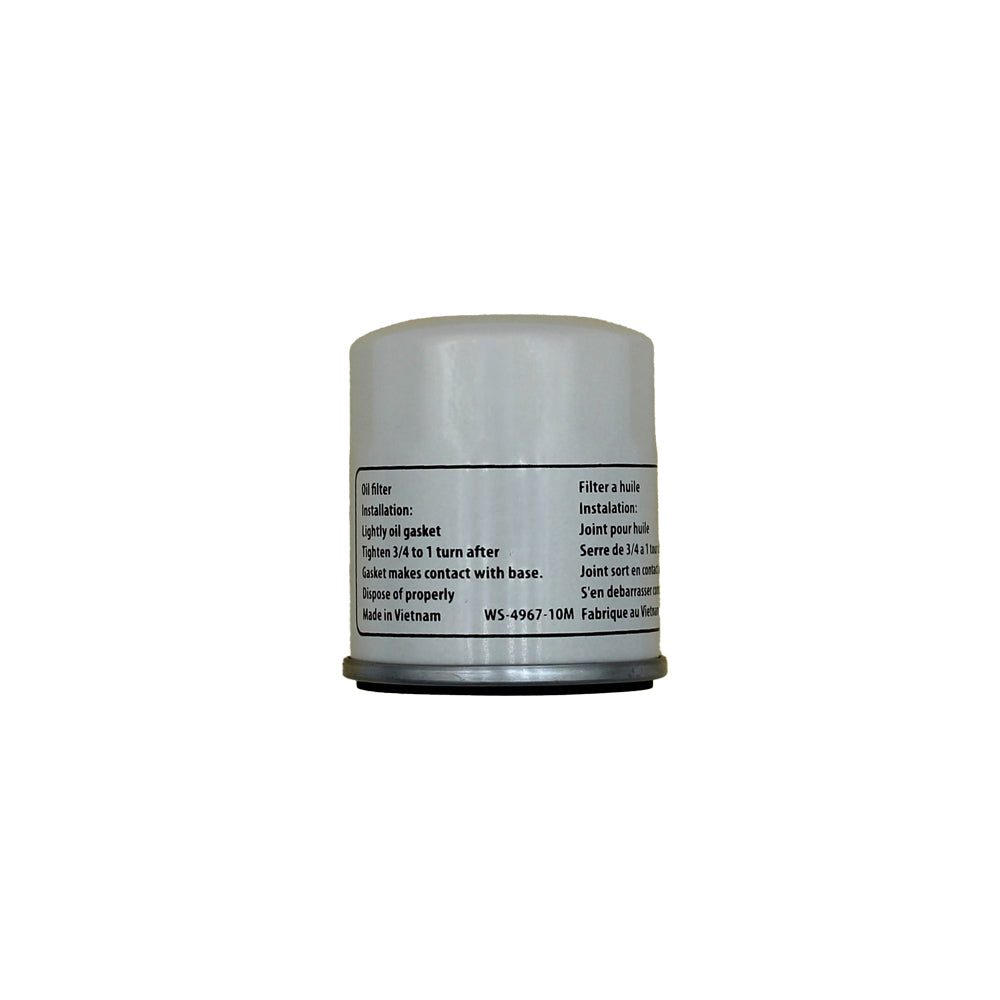

063-1050-00 Bad Boy ZT/CZT Hydro Drive Filter by Rotary
063-1050-00 Bad Boy ZT/CZT Hydro Drive Filter by Rotary
Couldn't load pickup availability
One New Aftermarket Replacement Hydro Drive Transmission Filter for Bad Boy Zero-Turn Mowers
This spin-on hydraulic transmission filter services the Hydro-Gear transaxle drive systems used on Bad Boy ZT and CZT zero-turn mowers, as well as a wide range of other commercial and residential zero-turn mowers from multiple brands. It filters contaminants from the hydro drive fluid, protecting the ZT-2800, ZT-3100, and ZT-3200 transaxles. Made in USA. Note: This is a taller version than the OEM filter -- verify clearance before installation. No anti-drain valve.
Specifications
- Thread: 3/4"-16
- Outside Diameter: 2-11/16"
- Height: 3"
- Micron: 25
- Relief Pressure: 7-9 PSI
- Anti-Drain Valve: No
- Made in USA
Compatible Models
Bad Boy: ZT, CZT
Ariens / Gravely: Pro Turn, ZT Series
Fits Exmark: Phazer, Quest
Fits Ferris: CCW Series, IS600Z, IS700Z
Hustler: Raptor SD, FasTrak, FasTrak SD
Scag: Freedom Z
Fits John Deere, Fits Toro, Bush Hog, Snapper, Fits Husqvarna, Encore, Country Clipper, Dixie Chopper, MTD: Verify fitment via Hydro-Gear 52114 cross-reference
Replaces Part Number(s):
063-1050-00, 109-3321, 109-3321-A, 1093321, 120-738, 12374, 21545100, 21545100-A, 02002150, 50052929, 5101026X1, 5101026X1-A, 5101026X1SM, 5101026X10, 5103382, 52114, 52114-A, 600976, 768341, 853157, 901153, CCH-2567, FII50-0026, H-2567, HG-52114, HG52114, MIU13018, 539113466
New aftermarket replacement part - not remanufactured, not used.
