02090-11265 Plow Bolt Fits Komatsu Models

Name: 02090-11265 Plow Bolt Fits Komatsu Models
SKU: 02090-11265
Price: 10.0 USD
Availability: InStock

02090-11265 Plow Bolt Fits Komatsu Models

£10.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

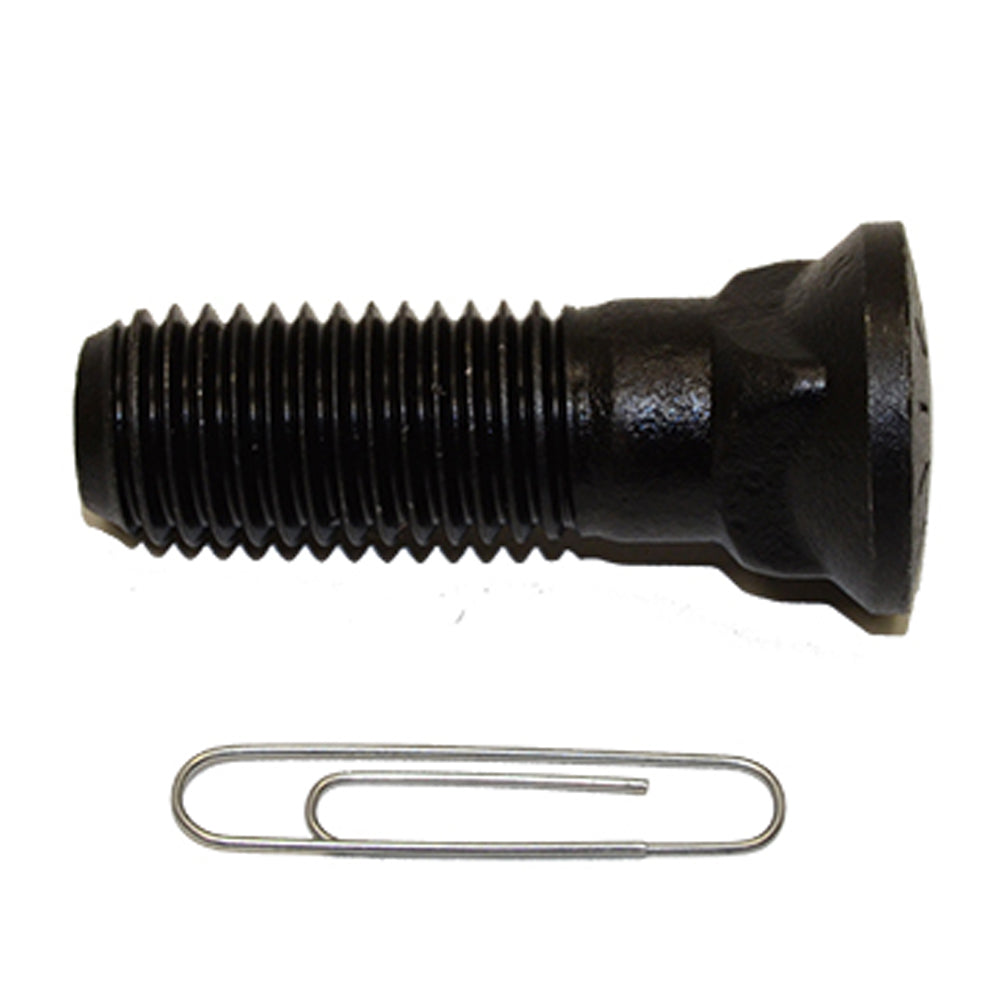

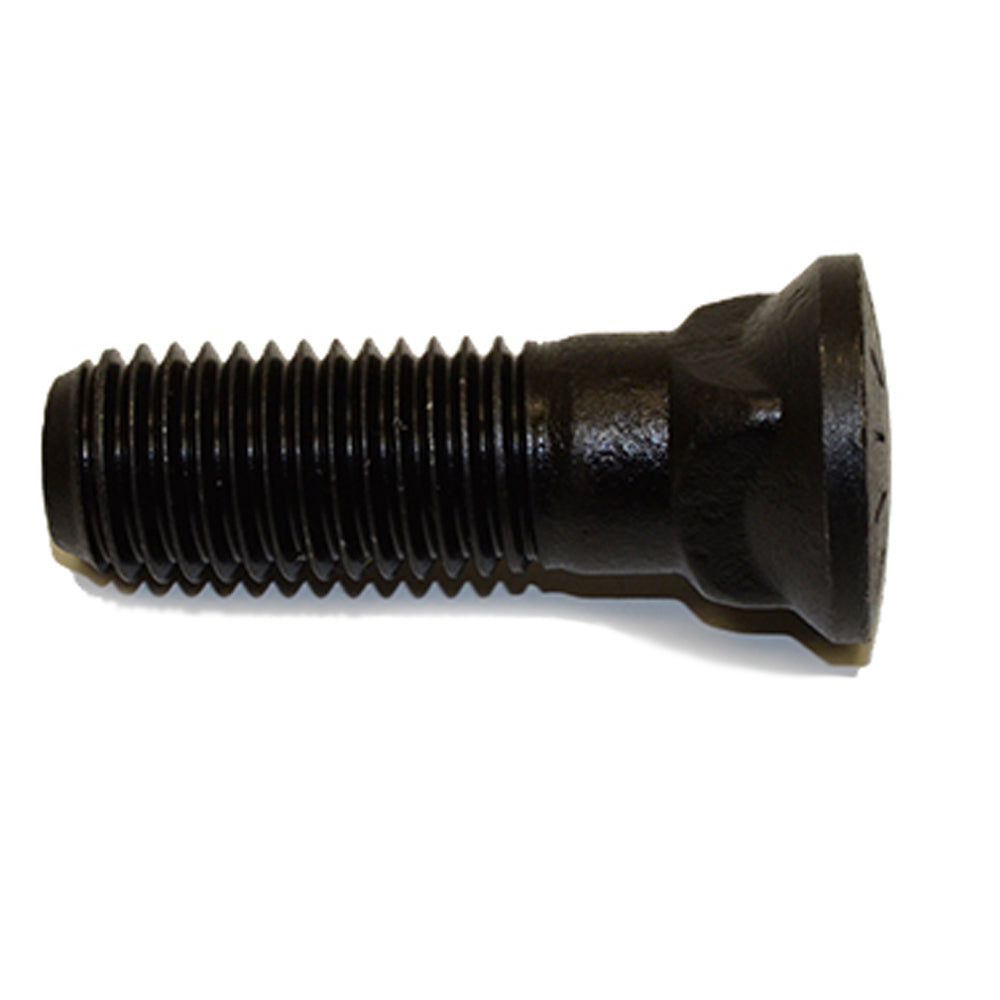

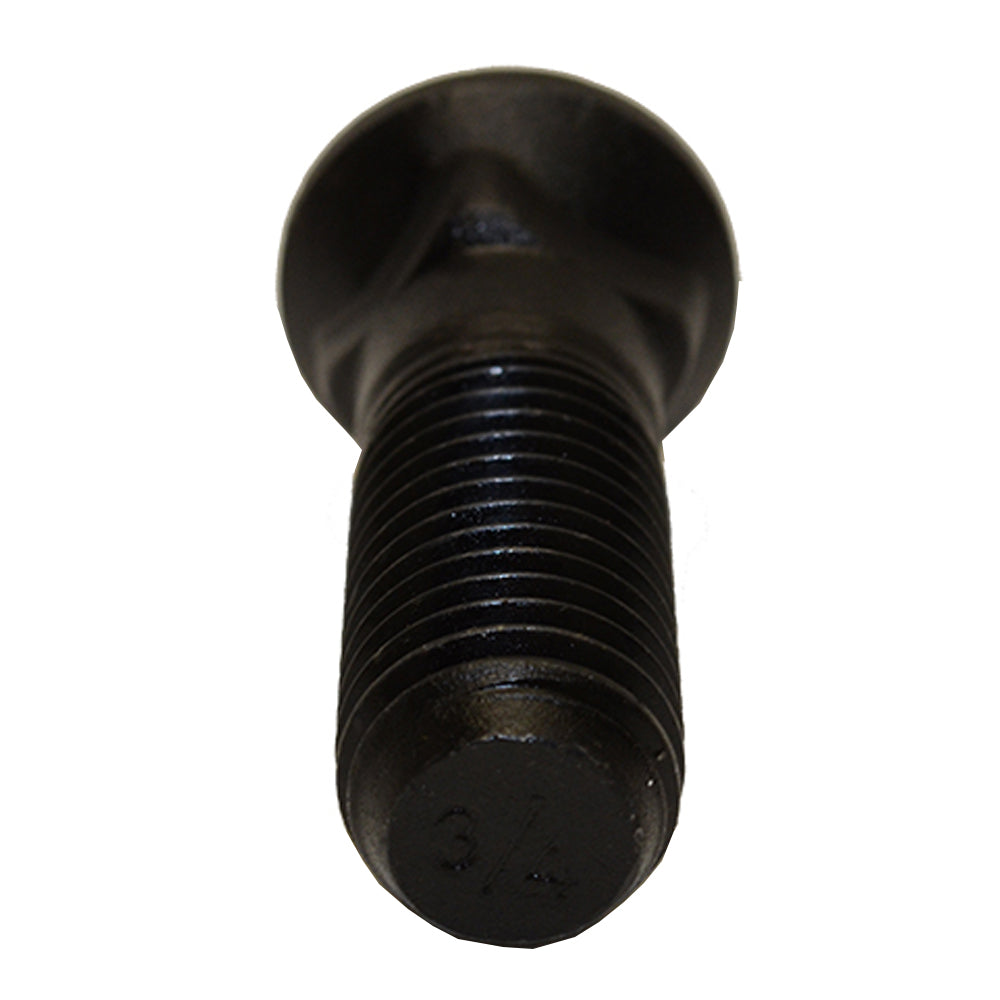

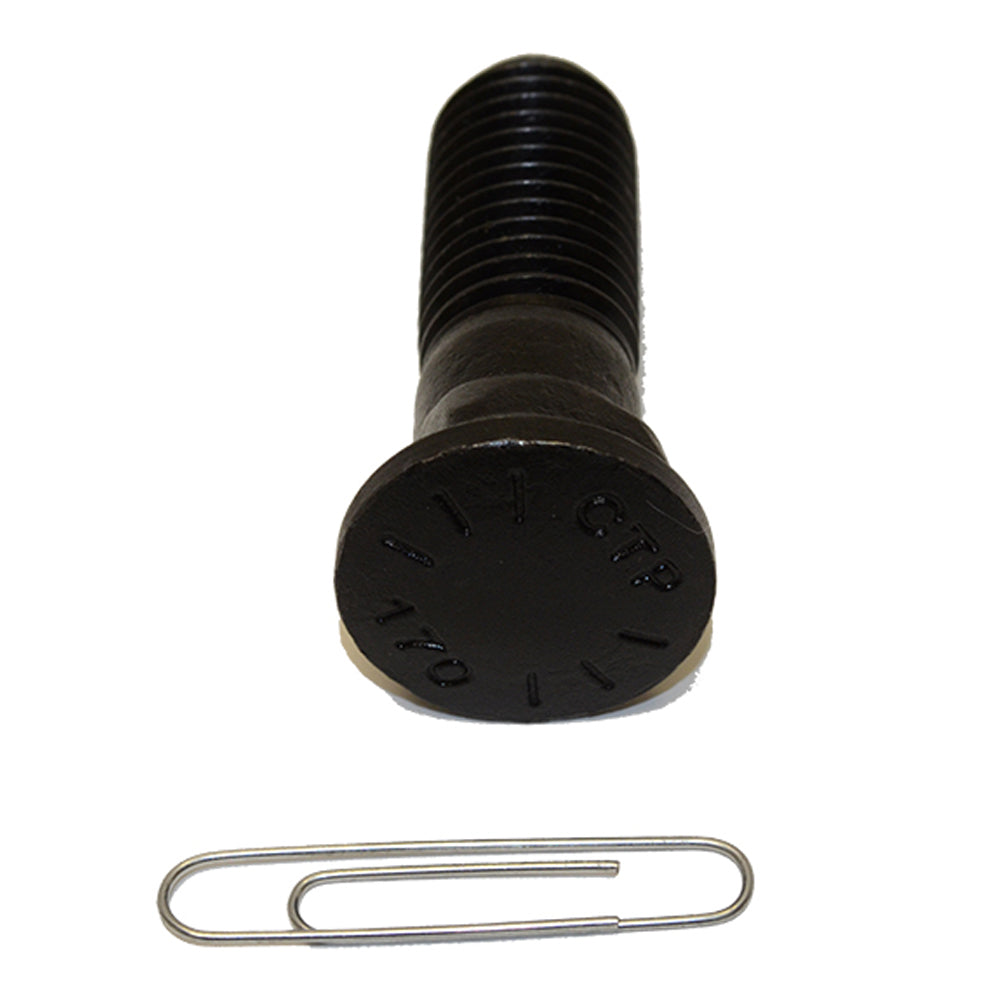

One New Aftermarket Replacement Cutting Edge Plow Bolt for Caterpillar (Cat) and Komatsu Heavy Equipment

This 3/4" x 2-1/2" dome-head plow bolt is a ground engaging tool (GET) fastener used to secure cutting edges and moldboard blades on dozers, motor graders, wheel loaders, excavators, scrapers, skidders, and compactors. The flat dome head sits flush against the cutting edge to resist snagging during grading and earthmoving operations. Built to coarse UNC thread standards for reliable torque and hold in high-vibration environments.

Specifications

Thread Size: 3/4"-10 (Coarse Thread UNC)
Total Bolt Length: 2-1/2 in.
Grip Length: 1.19 in.
Head Height: 0.63 in.
Head Width: 1.20 in.
Bolt Type: Cutting Edge / Plow Bolt (Dome Head)

Compatible Models

Caterpillar (Cat) Crawler Dozers: D4H, D4H XL, D4H III, D4HTSK II, D4HTSK III, D5, D5H, D5H XL, D5HTSK II, D5M, D5N, D5R XL, D5R2, D5R LGP, D6, D6 XE, D6GC, D6H, D6H II, D6H XL, D6H XR, D6K, D6K LGP, D6K XL, D6K2, D6K2 LGP, D6K2 XL, D6M, D6N, D6N LGP, D6N XL, D6R, D6R II, D6R III, D6R LGP, D6R STD, D6R XL, D6T, D6T LGP, D6T LGPPAT, D6T XL, D6T XL PAT, D6T XW, D6T XW PAT, D6XE, D6G2 XL

Caterpillar (Cat) Motor Graders: 12H ES, 12K, 12M, 12M 2, 12M 3, 14, 14G, 14H, 14H NA, 14L, 14M, 14M-3, 14M3, 16, 16G, 16M, 16M3, 18M3, 120, 120 GC, 120K, 120K 2, 120M, 120M 2, 140, 140 GC, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 160, 160H, 160H ES, 160H NA, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 163H, 163H NA

Caterpillar (Cat) Wheel Loaders: 914, 914K, 914M, 918M, 920, 924H, 924K, 926M, 930M, 950, 950H, 950K, 950L, 950M, 962, 962H, 962K, 962M, 966, 966C, 966D, 966E, 966F, 966F II, 966G, 966G II, 966 GC, 966H, 966K, 966K XE, 966L, 966M, 966M XE, 966XE, 970F, 972, 972G, 972G II, 972H, 972K, 972L, 972M, 972M XE, 972XE, 980, 980C, 980F, 980F II, 980G, 980G II, 980H, 980K, 980L, 980M, 980XE, 982, 982M, 982XE

Caterpillar (Cat) Excavators: 307E2, 311C, 312C, 312C L, 314 (via 321C), 315C, 320C, 321C, 321D LCR, 322C, 325, 325B L, 404F-22

Caterpillar (Cat) Crawler Loaders / Track Loaders: 973, 973C, 973D, 973K, 977K, 977L

Caterpillar (Cat) Compactors / Scrapers / Skidders: 4, 4A, 4P, 4S, 5, 5A, 5P, 5S, 6, 6A, 6S, 6SU, 7A, 55, 56, 56H, 515, 517, 518C, 525, 525B, 525C, 525D, 527, 535B, 535C, 535D, 545, 545C, 545D, 555D, 814, 814B, 814F, 814F II, 814K, 814S, 815, 815B, 815F, 815F II, 815K, TS185, TS225

Komatsu: Compatible with Komatsu equipment using plow bolt 02090-11265 (3/4"-10 x 2-1/2" dome head pattern)

John Deere: D4H, D5 (and other JD dozer models using T146934 dome head plow bolt)

Replaces Part Number(s):

02090-11265 (Komatsu), 5J-4773, 5J4773, 3F-4397, 3F4397 (Caterpillar), T146934 (John Deere), PB750250, DBD90-0004

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

972, 525C, D5R XL, 950K, D6T XL, 545, D6N XL, M320F, 972L, 160H, 815B, 160, 320C, 160H ES, D6R III, 980L, D6R II, 16G, D6H, D4, 14G, 966, 16M3, 3 AWD, 6, 950M, 966E, 321C, 160M 2, D6T LGP, 163H NA, 980G, 321D LCR, 950, 814B, D6T LGPPAT, 962M, 325, 815K, 525D, 972G, D4HTSK III, D5M, 5P, 140H ES, D6T XW, 814F, 920, 966G, 972K, 962K, 973K, 140K 2, 14M-3, 966M XE, D6R XL, 535B, 140M 3, 5, 973C, D6T, 972XE, 120M, 525B, 143H, 815F II, 972H, 5A, 924H, M318F, 545D, 140M 3 AWD, 973D, 160M 3, 982M, 140M, D4H III, 6SU, 950H, 120 GC, 12M, 924K, 972G II, 914M, 6A, 982, 140H NA, 120M 2, D6R LGP, 966F II, 404F-22, 914, D6H XL, 16, 545C, 311C, D6T XW PAT, D5R LGP, D6R STD, D6 XE, D6N, 307E2, 518C, M317F, 4A, 966C, D6K2, 5S, 14L, 972M, 4S, 322C, 535D, 980F II, 980XE, 980C, 16M, D6K LGP, 55, D6K2 XL, 6S, D5, D6N LGP, D4H, 814F II, 980, 555D, 814S, D6T XL PAT, 966K XE, 814K, 120K, 966K, 120K 2, 140M 2, 815F, 325B L, 14M3, 525, 535C, 966L, 160M 3 AWD, 972M XE, 982XE, 18M3, 980G II, 973, 4P, 930M, D5H, D4H XL, 977K, 962H, D6K2 LGP, 950L, 14H, D5H XL, 966 GC, 140H, 918M, 150, D4HTSK II, 12M 2, 980H, 315C, 815, 966F, 966D, 163H, 977L, 814, D6, M316F, 966M, D5R2, 140, 12M 3, 14M, 120, D6K, 160H NA, 966XE, 980F, D5N, 56, 966H, 515, 12K, D6R, D6GC, D6K XL, D6XE, 140 GC, 160M, 312C L, TS225, 312C, 527, 517, 926M, 966G II, D5HTSK II, 56H, 14, 962, 980M, D6H XR, 160K, D6H II, 970F, 7A, 980K, 12H ES, 140K, 14H NA, D6G2 XL, D6M, 914K, TS185

Additional Information:

Thread Size (in - TPI) (in): 3/4-10, Total Bolt Length (in): 2 1/2, Bolt Type: Cutting Edge Bolts, Grip Length (in): 1.19, Head Height (in): 0.63, Thread: Coarse Thread UNC, Head Width (in): 1.20
